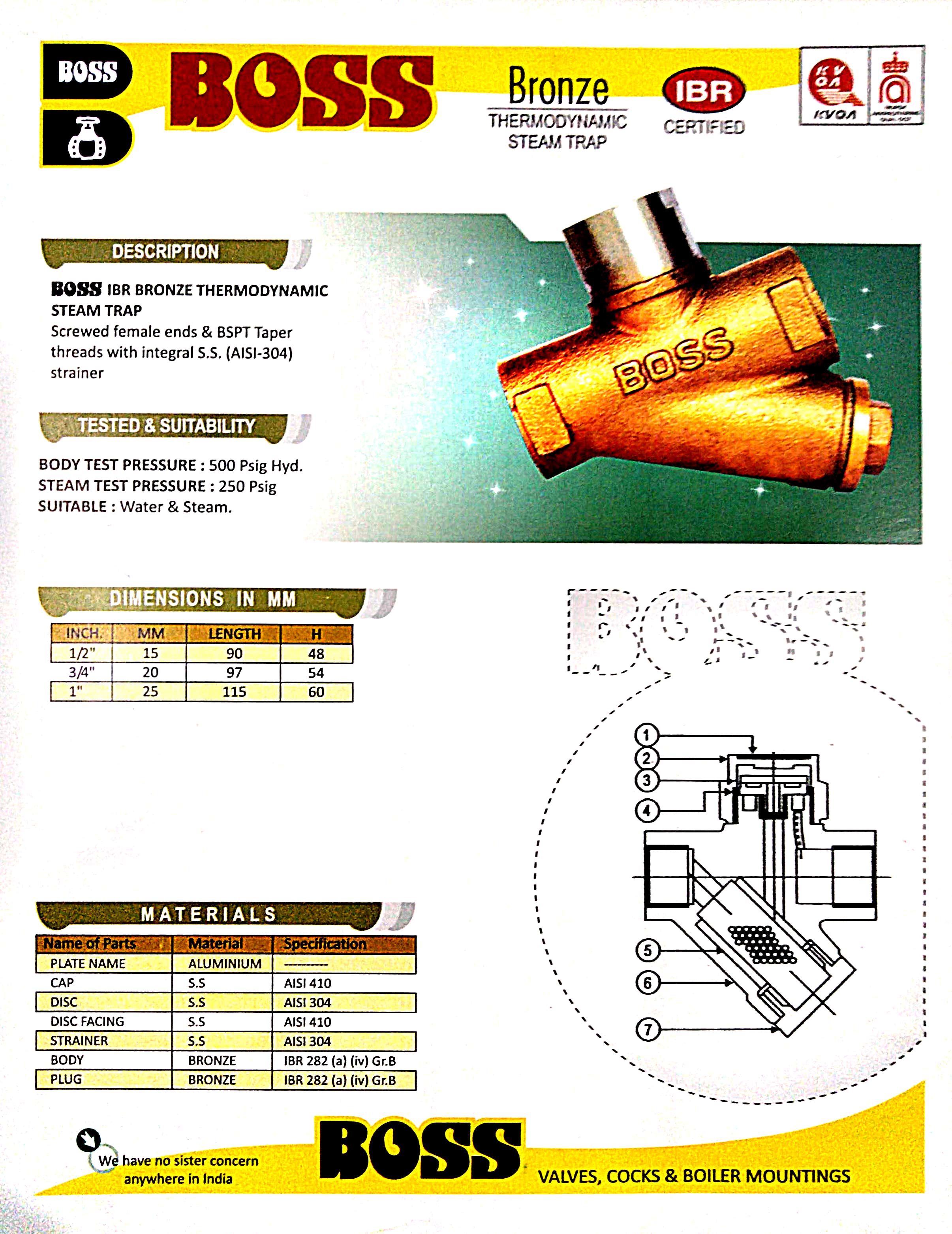

BOSS IBR BRONZE THERMODYNAMIC STEAM TRAP Screwed female ends & BSPT Taper threads with integral S.S. (AISI-304) strainer

Design Standards

DESIGN AND MANUFACTURING	Standard Pattern
VALVE FACE TO FACE	As per Standard
INSPECTION & TESTING	BODY TEST PRESSURE: 5 0 0 Psig Hyd. / S T E A M TEST PRESSURE: 250 Psig / BOSS

Key Features

IBR Certified Quality

Screwed Female Ends

Technical Testing

BODY TEST PRESSURE: 5 0 0 Psig Hyd.	Verified as per B O S S Quality Standards
S T E A M TEST PRESSURE: 250 Psig	Verified as per B O S S Quality Standards
BOSS	Verified as per B O S S Quality Standards
INCH.	Verified as per B O S S Quality Standards
1/2" 3/4"	Verified as per B O S S Quality Standards
1"	Verified as per B O S S Quality Standards

Dimension Table

15
20
25
90
97
115
48
54
60

Temperature Rating

Standard Industrial Temperature

Materials of Construction

Part Name	Specification
CAP	S.S AISI 410
DISC	S.S AISI 304
DISC FACING	S.S AISI 410
STRAINER	S.S AISI 304
BODY	BRONZE IBR 282 ( a ) ( i v ) G r . B PLUG BRONZE IBR 282 (a) (iv) Gr.B
