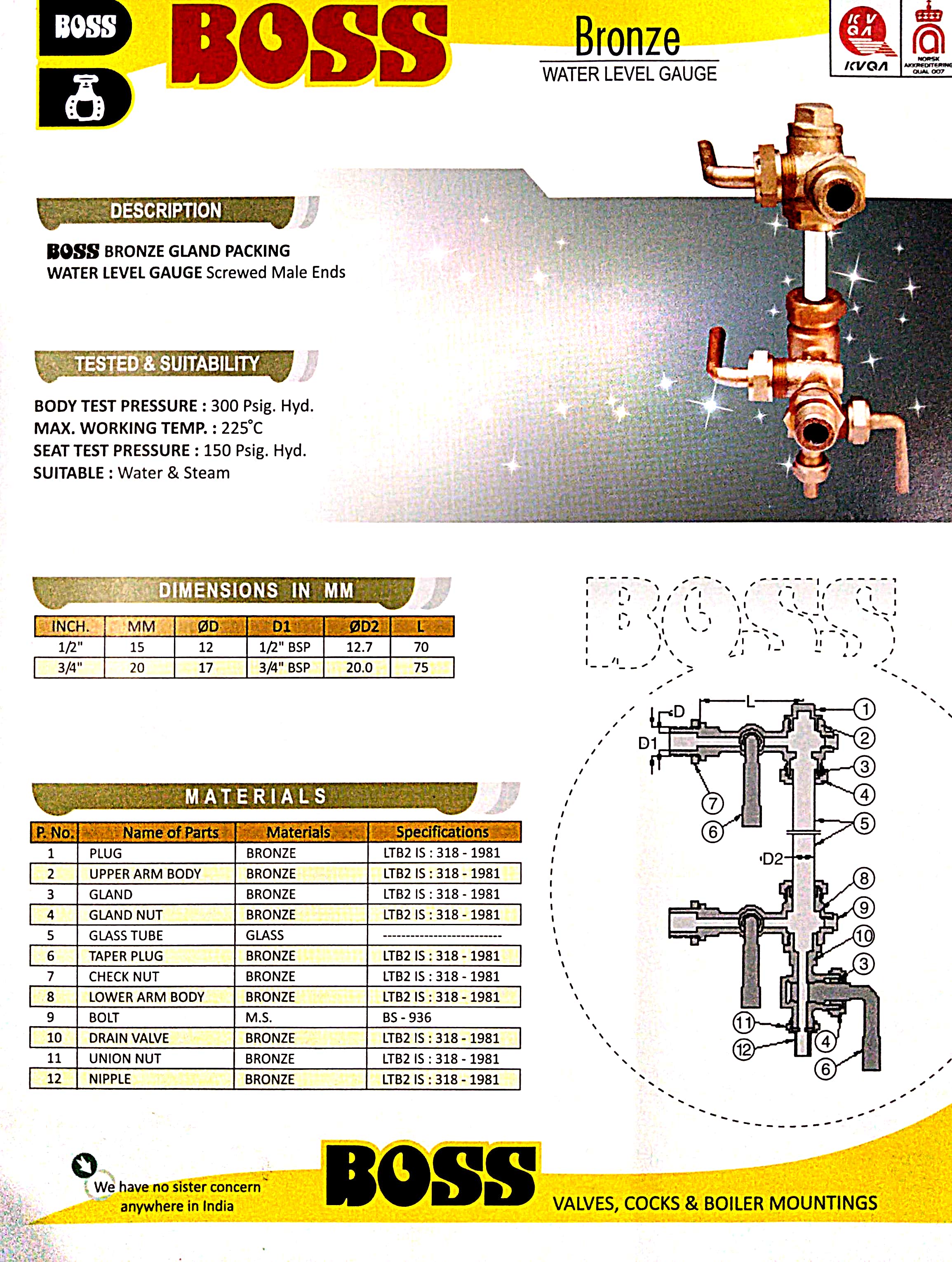

B O S S BOSS Bronze WATER LEVEL GAUGE

BOSS BRONZE GLAND PACKING WATER LEVEL GAUGE Screwed Male Ends

Design Standards

DESIGN AND MANUFACTURING	BS - 936, IS : 318 - 1981, IS : 318 - 1981
VALVE FACE TO FACE	As per Standard
INSPECTION & TESTING	BODY TEST PRESSURE: 300 Psig. Hyd. / MAX. WORKING TEMP. : 225°C / SEAT TEST PRESSURE: 150 Psig. H y d .

Key Features

Screwed Female Ends

Technical Testing

BODY TEST PRESSURE: 300 Psig. Hyd.	Verified as per B O S S BOSS Bronze WATER LEVEL GAUGE Quality Standards
MAX. WORKING TEMP. : 225°C	Verified as per B O S S BOSS Bronze WATER LEVEL GAUGE Quality Standards
SEAT TEST PRESSURE: 150 Psig. H y d .	Verified as per B O S S BOSS Bronze WATER LEVEL GAUGE Quality Standards
INCH.	Verified as per B O S S BOSS Bronze WATER LEVEL GAUGE Quality Standards
1/2"	Verified as per B O S S BOSS Bronze WATER LEVEL GAUGE Quality Standards
3/4"	Verified as per B O S S BOSS Bronze WATER LEVEL GAUGE Quality Standards
MM	Verified as per B O S S BOSS Bronze WATER LEVEL GAUGE Quality Standards
15	Verified as per B O S S BOSS Bronze WATER LEVEL GAUGE Quality Standards
20	Verified as per B O S S BOSS Bronze WATER LEVEL GAUGE Quality Standards

Dimension Table

12
17
D1 1/2" BSP
3/4" BSP
ØD2
12.7
20.0
70
75

Temperature Rating

Standard Industrial Temperature

Materials of Construction

Part Name	Specification
PLUG	BRONZE LTB2 I S : 318 - 1981 2 UPPER ARM BODY BRONZE LTB2 IS : 318 - 1981
GLAND	BRONZE LTB2 IS : 318 - 1981
GLAND NUT	BRONZE LTB2 IS : 318 - 1981
GLASS	TUBE GLASS
TAPER PLUG	BRONZE LTB2 IS : 318 - 1981
CHECK NUT	BRONZE LTB2 I S : 318 - 1981
LOWER A R M BODY	BRONZE LTB2 IS : 318 - 1981
BOLT	M.S. BS - 936
DRAIN VALVE	BRONZE LTB2 I S : 318 - 1981
UNION NUT	BRONZE LTB2 IS : 318 - 1981
NIPPLE	BRONZE LTB2 IS : 318 - 1981
•D2-	-
