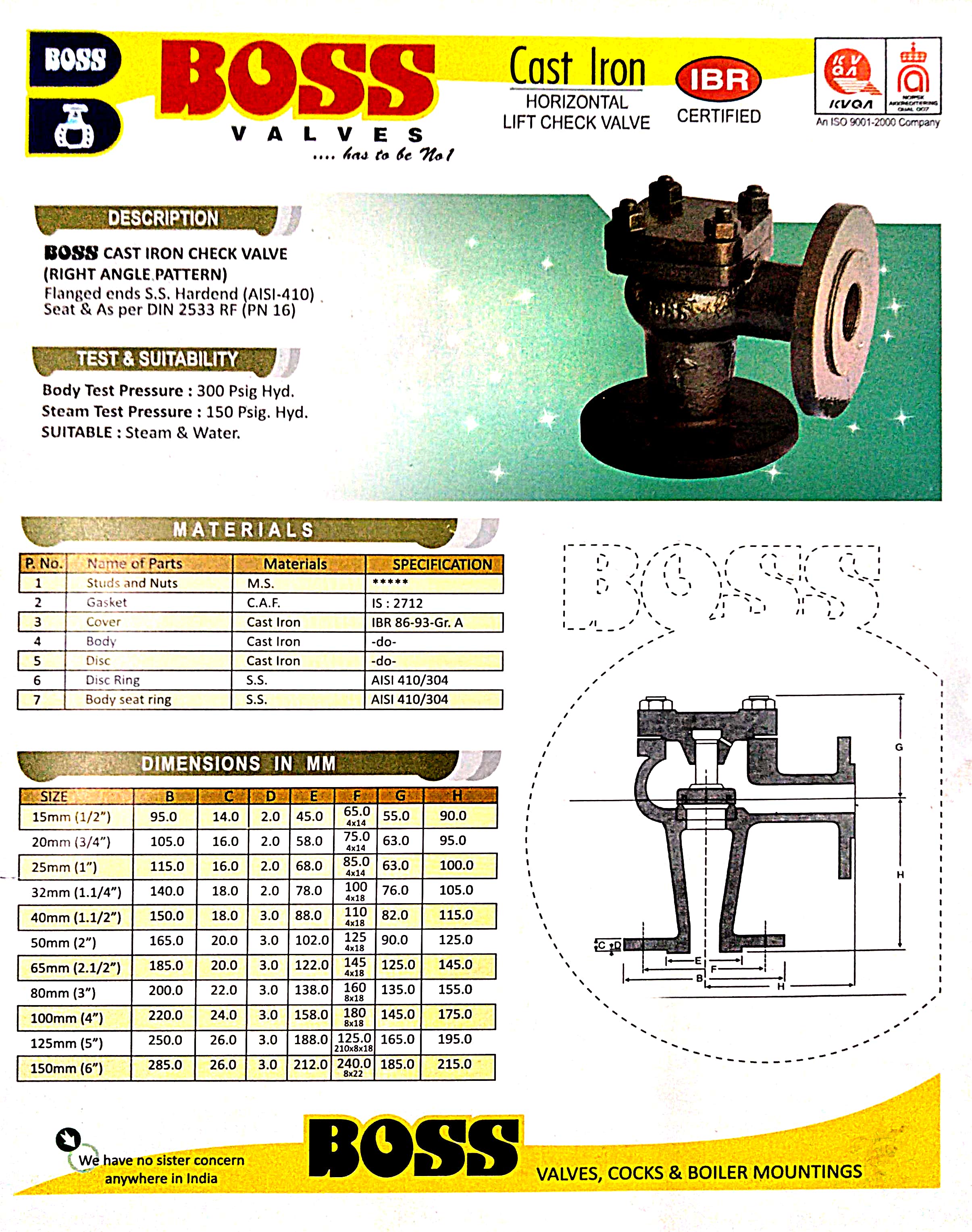

BOSS CAST IRON CHECK VALVE (RIGHT ANGLE PATTERN) Flanged ends S.S. Hardend (AISI-410) . Seat & As per DIN 2533 RF (PN 16) TEST & SUITABILITY Body Test Pressure: 300 Psig Hyd. Steam Test Pressure : 150 Psig. Hyd. SUITABLE: Steam & Water.

Design Standards

DESIGN AND MANUFACTURING	DIN 2533, IS : 2712
VALVE FACE TO FACE	As per Standard
INSPECTION & TESTING	Body Test Pressure: 300 Psig Hyd. / Steam Test Pressure : 150 Psig. Hyd.

Key Features

IBR Certified Quality

Flanged Ends

Technical Testing

Body Test Pressure: 300 Psig Hyd.	Verified as per B O S S BOSS VALVE S Quality Standards
Steam Test Pressure : 150 Psig. Hyd.	Verified as per B O S S BOSS VALVE S Quality Standards

Dimension Table

15mm (1/2") 95.0 14.0 2.0 45.0 65.0

4x14 55.0 90.0

20mm (3/4") 105.0 16.0 2.0 58.0 75.0 4x14

63.0 95.0

25mm (1") 115.0 16.0 2.0 68.0 85.0

4x14

63.0 100.0

32mm (1.1/4") 140.0 18.0 2.0 78.0 100 4x18

76.0 105.0

40mm (1.1/2") 150.0 18.0 3.0 88.0 110

4x18

82.0 115.0

50mm 2") 165.0 20.0 3.0 102.0 125 90.0 125.0

65mm (2.1/2") 185.0 20.0 3.0 122.0 145

4 x 1 8 125.0 145.0

80mm (3) 200.0 22.0 3.0 138.0 160

8x18

135.0 155.0

100mm (4") 220.0 24.0 3.0 158.0 180 8x18

145.0 175.0

125mm (5") 250.0 26.0 3.0 188.0 125.0 165.0 195.0

150mm (6") 285.0 26.0 3.0 212.0 240.0 185.0 215.0

8x22

Temperature Rating

Standard Industrial Temperature

Materials of Construction

Part Name	Specification
Gasket	C.A.F. IS : 2712
Cover	Cast Iron IBR 86-93-Gr. A
Body	Cast Iron -do-
Disc	Cast Iron -do-
Disc Ring	S.S. AISI 410/304
Body seat ring	S.S. AISI 410/304
