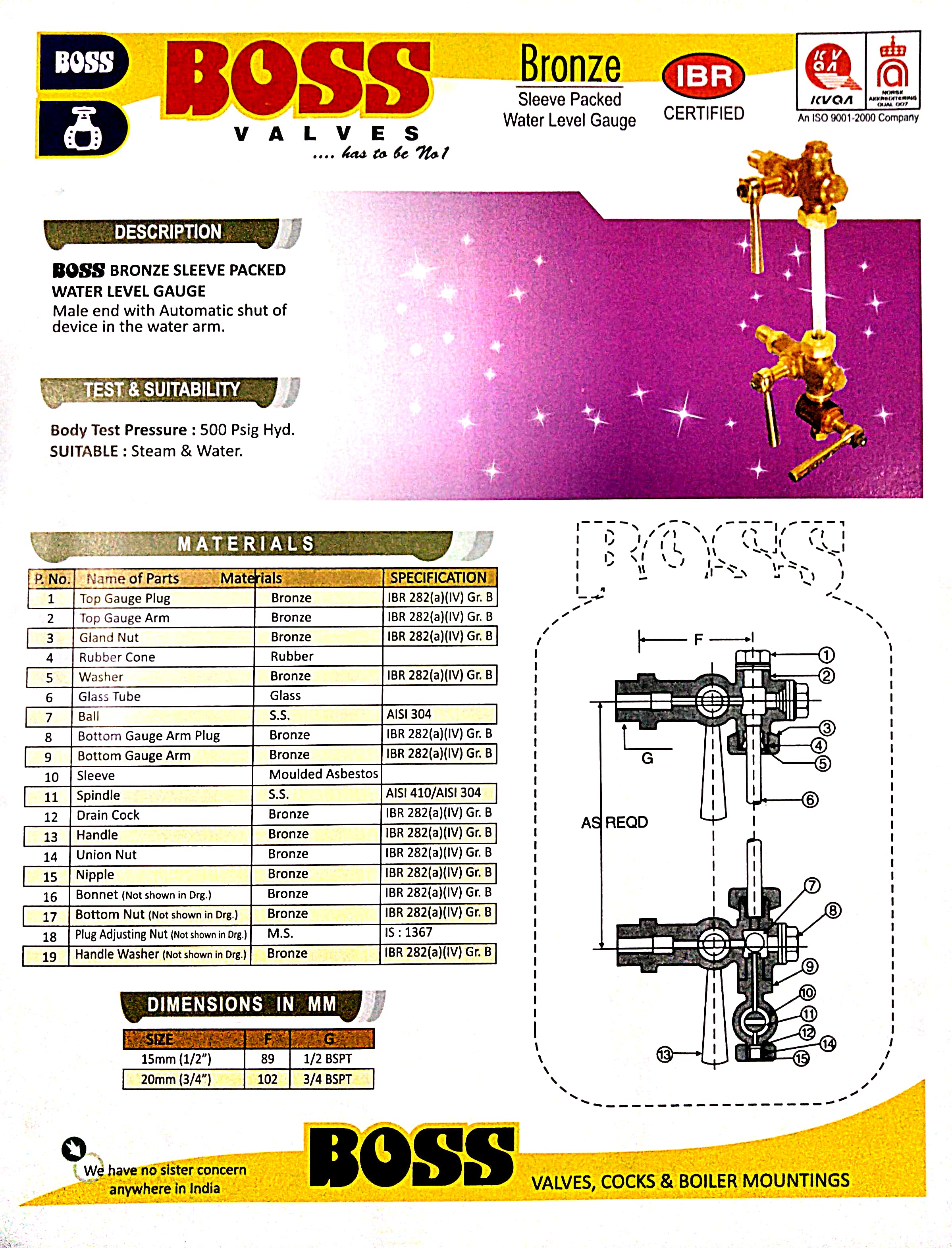

BOSS BRONZE SLEEVE PACKED WATER LEVEL GAUGE Male end with Automatic shut of device in the water arm. TEST & SUITABILITY Body Test Pressure: 500 Psig Hyd. SUITABLE: Steam & Water.

Design Standards

DESIGN AND MANUFACTURING	IS: 1367
VALVE FACE TO FACE	As per Standard
INSPECTION & TESTING	Body Test Pressure: 500 Psig Hyd.

Key Features

IBR Certified Quality

Technical Testing

Body Test Pressure: 500 Psig Hyd.

Verified as per B O S S BOSS VALVE S Quality Standards

Dimension Table

15mm (1/2")

20mm 3/4")

89

102

1/2 BSPT

3/4 BSPT

Temperature Rating

Standard Industrial Temperature

Materials of Construction

Part Name	Specification
Top Gauge Plug	Bronze IBR 282(a)(IV) G r . B
Top	Gauge Arm B r o n z e IBR 282(a)(IV) Gr.B
Gland Nut	Bronze I B R 282(a)(IV) G r . B
Rubber	Cone Rubber
Washer	Bronze IBR 282(a)(IV) Gr. B
Glass	Tube Glass
Ball	S.S. AISI 304
Bottom Gauge Arm Plug	Bronze IBR 282(a)(IV) Gr. B
Bottom Gauge Arm	Bronze IBR 282(a)(IV) Gr. B
Sleeve Moulded	Asbestos
Spindle	S.S. AISI 410/AISI 304
Drain Cock	Bronze IBR 282(a)(IV) Gr. B
Handle	Bronze
Union Nut	Bronze IBR 282(a) (IV) Gr. B
Nipple	Bronze IBR Gr. B
Bonnet (Not shown i n Drg.)	Bronze IBR 282(a)(IV) Gr. B
Bottom Nut (Not shown in Drg.)	Bronze IBR 282(a)(IV) Gr. B
Plug Adjusting Nut (Not shown in Drg.)	M.S. IS: 1367
Handle Washer (Not shown in Drg.)	Bronze IBR 282(a)(IV) Gr. B
AS	REQD
