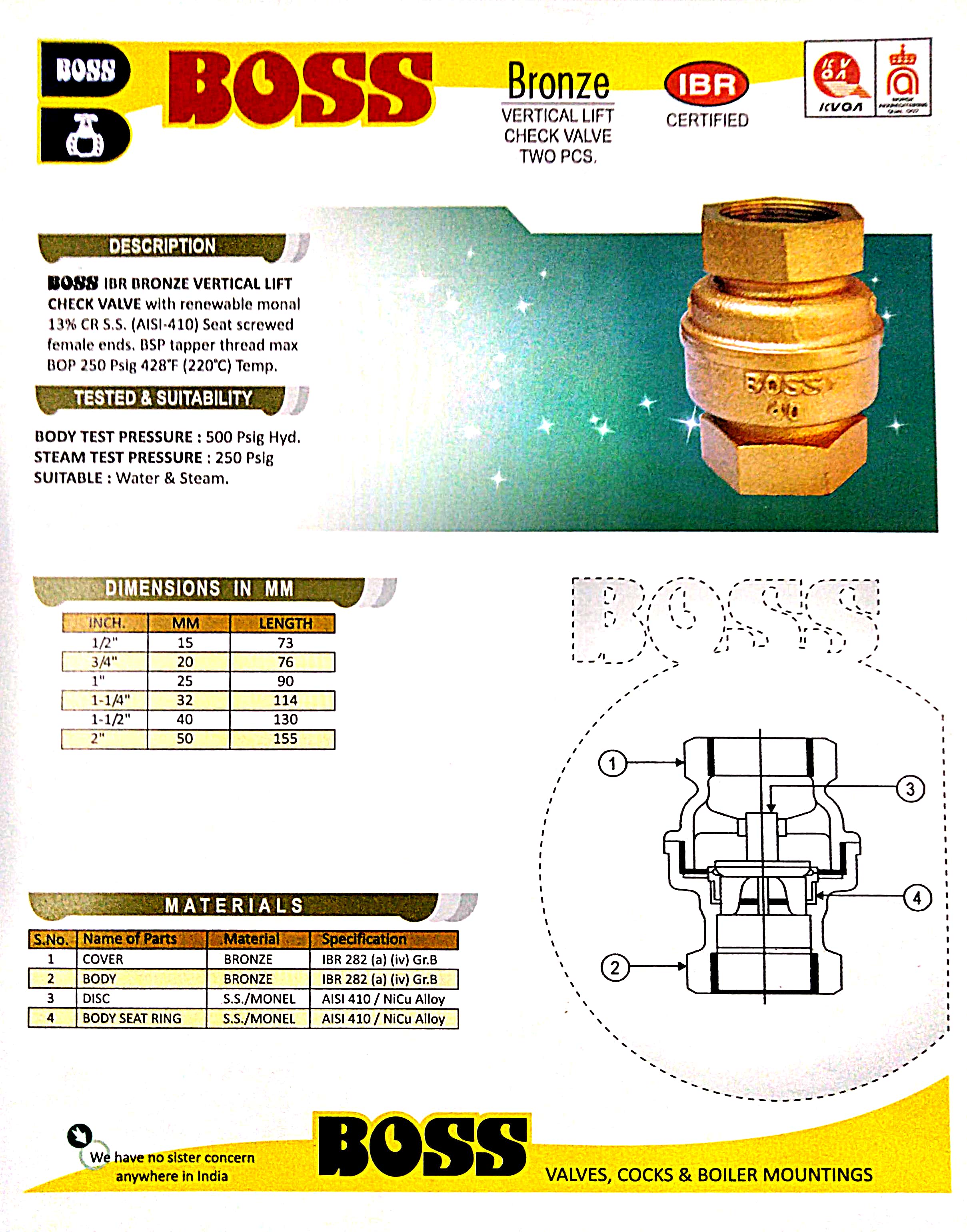

BOSS B r o n z e VERTICAL LIFT

BOSS IBR BRONZE VERTICAL LIFT CHECK VALVE with renewable monal 13% CR S.S. (AISI-410) Seat screwed female ends. BSP tapper thread max BOP 250 Psig 428°F (220°C) Temp.

Design Standards

DESIGN AND MANUFACTURING	Standard Pattern
VALVE FACE TO FACE	As per Standard
INSPECTION & TESTING	BODY TEST P R E S S U R E : 500 Psig Hyd. / S T E A M TEST PRESSURE: 250 P s i g / B O ͜ S

Key Features

Renewable Seat & Stem

IBR Certified Quality

Screwed Female Ends

Technical Testing

BODY TEST P R E S S U R E : 500 Psig Hyd.	Verified as per BOSS B r o n z e VERTICAL LIFT Quality Standards
S T E A M TEST PRESSURE: 250 P s i g	Verified as per BOSS B r o n z e VERTICAL LIFT Quality Standards
B O ͜ S	Verified as per BOSS B r o n z e VERTICAL LIFT Quality Standards

Dimension Table

1/2" 15 73

3/4" 20 76 1" 25 90

1-1/4" 32 114

1-1/2" 40 130

2" 50 155

Temperature Rating

Standard Industrial Temperature

Materials of Construction

Part Name	Specification
DISC	S.S./MONEL AISI 410 / NiCu Alloy
BODY SEAT RING	S.S./MONEL AISI 410 / NiCu Alloy
