BOSS BRONZE DOUBLE DISC TYPE

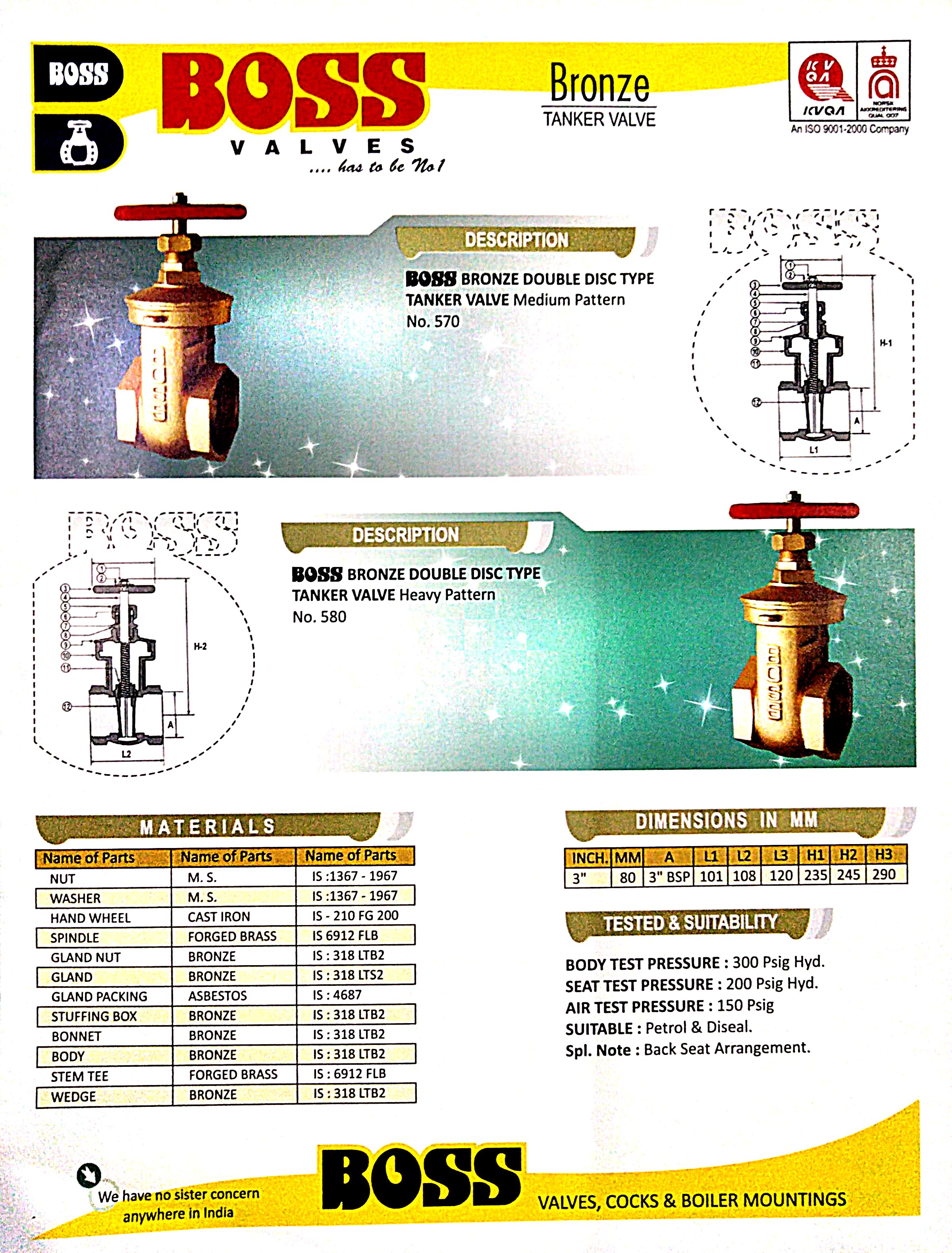

BOSS BRONZE DOUBLE DISC TYPE TANKER VALVE Medium Pattern No. 570 H-1 DESCRIPTION BOSS BRONZE DOUBLE DISC TYPE TANKER VALVE Heavy Pattern No. 580 H-2 MALERIA Name of P a r t s / Name of Parts Name of P a r t s NUT M. S. I S :1367 - 1967 WASHER M.S. IS :1367 - 1967 HAND WHEEL CAST IRON IS - 210 FG 200 SPINDLE FORGED BRASS I S 6912 FLB GLAND NUT BRONZE I S : 318 LTB2 GLAND BRONZE I S : 318 LTS2 GLAND PACKING ASBEST OS IS : 4687 STUFFING BOX BRONZE IS : 318 LTB2 BONNET BRONZE I S : 318 LTB2 BODY BRONZE IS : 318 LTB2 STEM TEE FORGED BRASS IS : 6912 FLB WEDGE BRONZE IS : 318 LTB2

Design Standards

DESIGN AND MANUFACTURING	IS - 210, IS : 318, IS : 4687, IS : 6912, IS :1367 - 1967
VALVE FACE TO FACE	As per Standard
INSPECTION & TESTING	BODY TEST PRESSURE: 300 Psig Hyd. / SEAT TEST PRESSURE: 200 Psig Hyd. / AIR TEST PRESSURE: 150 Psig

Key Features

Double Disc Type

Hand Wheel Operated

Technical Testing

BODY TEST PRESSURE: 300 Psig Hyd.	Verified as per BOSS BRONZE DOUBLE DISC TYPE Quality Standards
SEAT TEST PRESSURE: 200 Psig Hyd.	Verified as per BOSS BRONZE DOUBLE DISC TYPE Quality Standards
AIR TEST PRESSURE: 150 Psig	Verified as per BOSS BRONZE DOUBLE DISC TYPE Quality Standards
Spl. Note : Back Seat Arrangement.	Verified as per BOSS BRONZE DOUBLE DISC TYPE Quality Standards
We have no sister concern	Verified as per BOSS BRONZE DOUBLE DISC TYPE Quality Standards
anywhere in India	Verified as per BOSS BRONZE DOUBLE DISC TYPE Quality Standards
BOSS VALVES, COCKS & BOILER MOUNTINGS	Verified as per BOSS BRONZE DOUBLE DISC TYPE Quality Standards

Dimension Table

3 " 80

A L1L2 L3 H1 H2 H3

3 " BSP 101 108 120 235245290

Temperature Rating

Standard Industrial Temperature

Materials of Construction

Part Name	Specification
