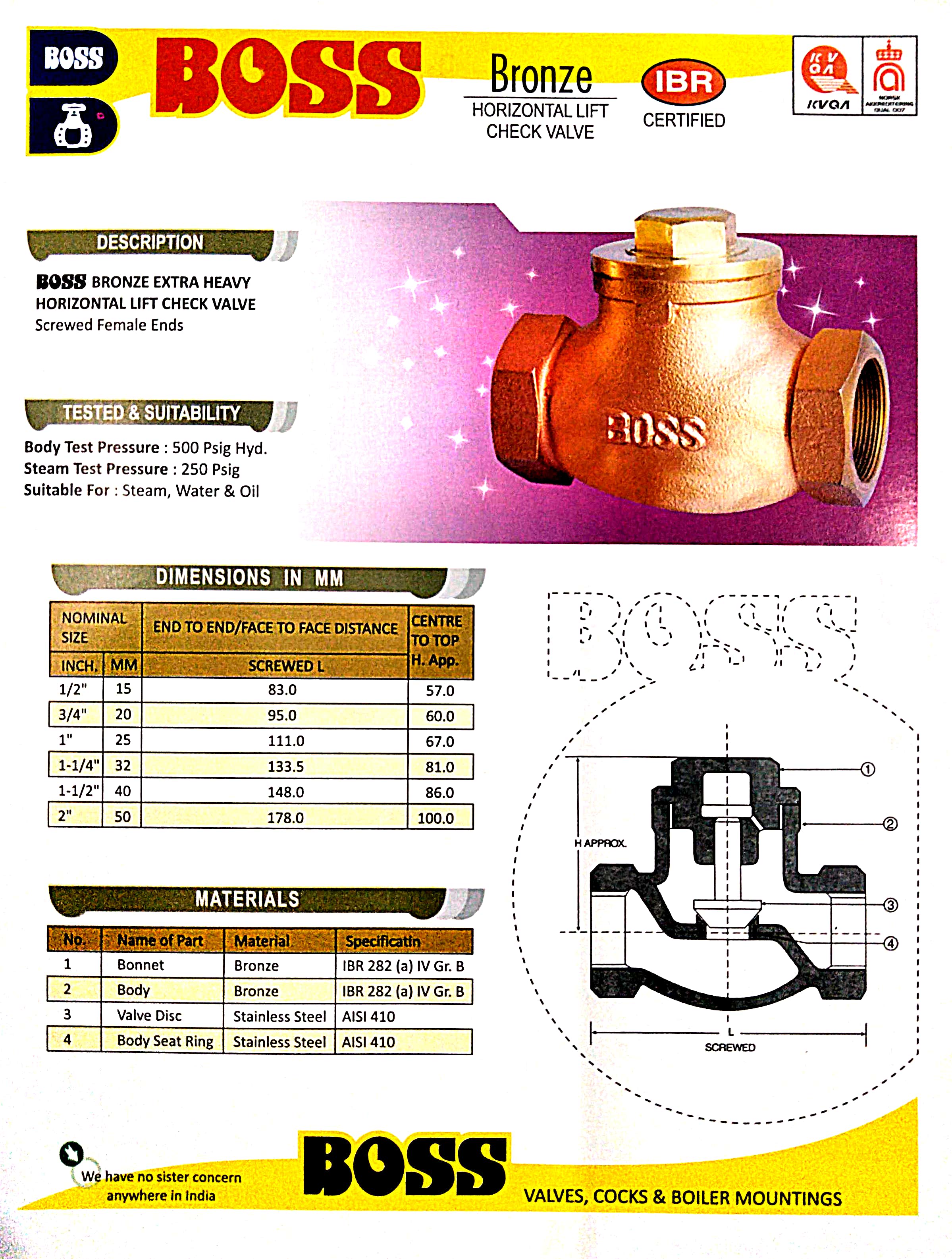

BOSS BRONZE EXTRA HEAVY HORIZONTAL LIFT CHECK VALVE Screwed Female Ends

Design Standards

DESIGN AND MANUFACTURING	Standard Pattern
VALVE FACE TO FACE	As per Standard
INSPECTION & TESTING	Body Test Pressure: 500 Psig Hyd. / Steam Test Pressure : 250 Psig / B O S S

Key Features

IBR Certified Quality

Screwed Female Ends

Technical Testing

Body Test Pressure: 500 Psig Hyd.	Verified as per BOSS Bronze HORIZONTAL LIFT Quality Standards
Steam Test Pressure : 250 Psig	Verified as per BOSS Bronze HORIZONTAL LIFT Quality Standards
B O S S	Verified as per BOSS Bronze HORIZONTAL LIFT Quality Standards

Dimension Table

1/2" 15 83.0 57.0

3/4" 20 95.0 60.0

1 " 25 111.0 67.0

1-1/4" 32 133.5 81.0

1-1/2" 40 148.0 86.0

2" 50 178.0 100.0

Temperature Rating

Standard Industrial Temperature

Materials of Construction

Part Name	Specification
No.	Name of Part Material: Specificatin
Bonnet	Bronze IBR 282 (a) IV Gr. B
Body	Bronze IBR 282(a) I V Gr. B
Valve Disc	Stainless Steel AISI 410
Body Seat Ring	Stainless Steel AISI 410 SCREWED
