BOSS Bronze "Y' TYPE STRAINER

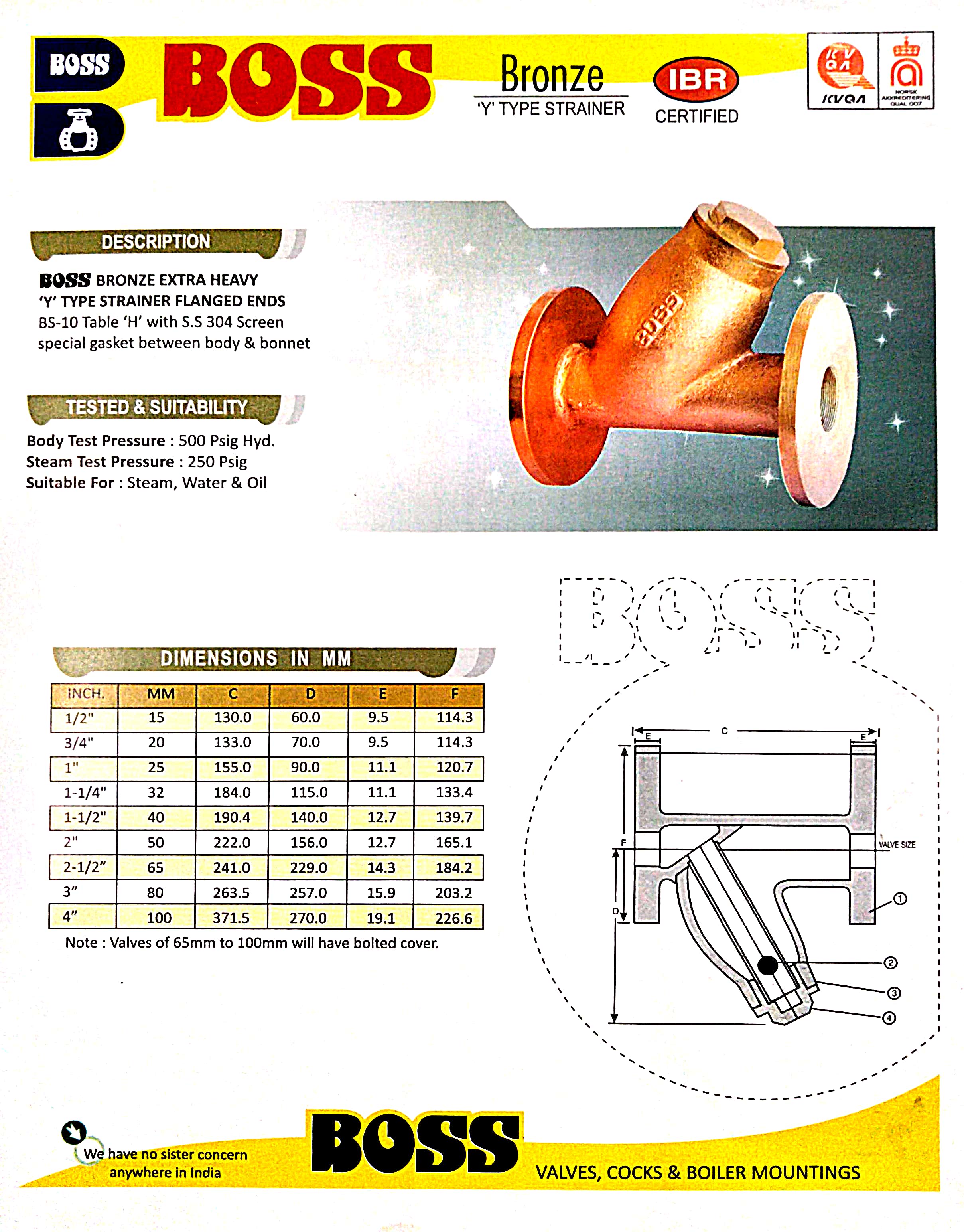

BOSS BRONZE EXTRA HEAVY "Y' TYPE STRAINER FLANGED ENDS BS-10 Table 'H' with S.S 304 Screen special gasket between body & bonnet

Design Standards

DESIGN AND MANUFACTURING	BS-10 Table 'H'
VALVE FACE TO FACE	As per Standard
INSPECTION & TESTING	Body Test Pressure : 500 Psig Hyd. / Steam Test Pressure : 250 Psig / ROAS

Key Features

Bolted Cover Design

IBR Certified Quality

Flanged Ends

Technical Testing

Body Test Pressure : 500 Psig Hyd.	Verified as per BOSS Bronze "Y' TYPE STRAINER Quality Standards
Steam Test Pressure : 250 Psig	Verified as per BOSS Bronze "Y' TYPE STRAINER Quality Standards
ROAS	Verified as per BOSS Bronze "Y' TYPE STRAINER Quality Standards

Dimension Table

1/2" 15 130.0 60.0 9.5 114.3

3/4" 20 133.0 70.0 9.5 114.3

1" 25 155.0 90.0 11.1 120.7

1-1/4" 32 184.0 115.0 11.1 133.4

1-1/2" 40 190.4 140.0 12.7 139.7

2" 50 222.0 156.0 12.7 165.1

2-1/2" 65 241.0 229.0 14.3 184.2

3" 80 263.5 257.0 15.9 203.2

4" 100

371.5 270.0 19.1

Note : Valves of 65mm to 100mm will have bolted cover.

226.6

3

Temperature Rating

Standard Industrial Temperature

Materials of Construction

Part Name	Specification
