BOSS CAST IRON BALL VALVE

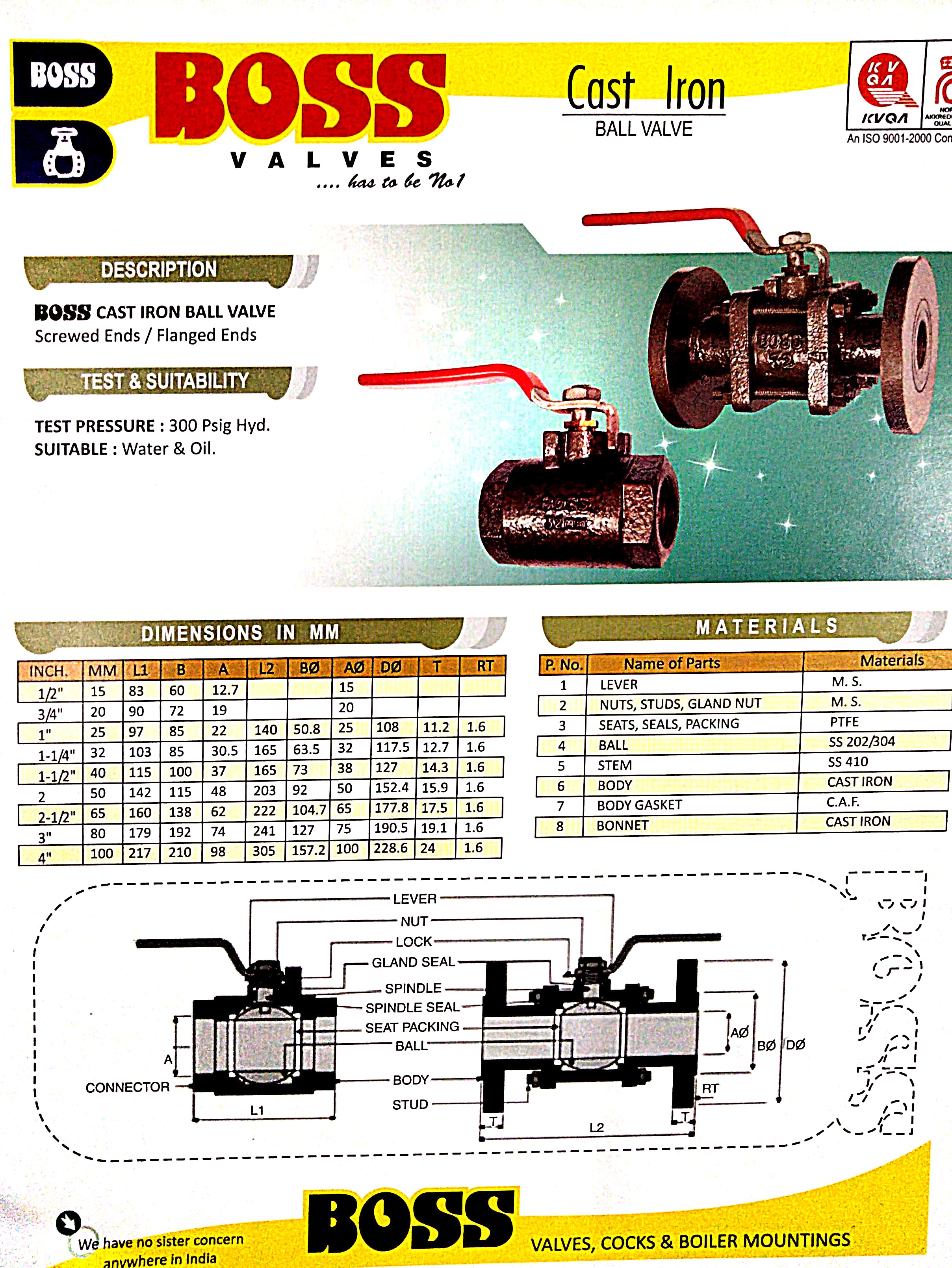

BOSS CAST IRON BALL VALVE Screwed Ends / Flanged Ends TEST & SUITABILITY TEST PRESSURE: 300 Psig Hyd. SUITABLE : Water & Oil.

Design Standards

DESIGN AND MANUFACTURING	Standard Pattern
VALVE FACE TO FACE	As per Standard
INSPECTION & TESTING	TEST PRESSURE: 300 Psig Hyd.

Key Features

Screwed Female Ends

Flanged Ends

Technical Testing

TEST PRESSURE: 300 Psig Hyd.

Verified as per BOSS CAST IRON BALL VALVE Quality Standards

Temperature Rating

Standard Industrial Temperature

Materials of Construction

Part Name	Specification
INCH.	MM L1 B A L2 BØ A0
"	-
/4"	-
"	25 97 85 22 140 50.8 25 108 11.2 1.6
-14"	32 103 85 30.5 165 63.5 32 117.5 12.7 1.6
-1/2"	40 115 100 37 165 73 38 127 14.3 1.6
-1/2"	65 160 138 62 222 104.7 65 177.8 17.5 1.6
"	80 179 192 74 241 127 75 190.5 19.1 1.6
|	157.2 100 228.6 24 1.6
LEVER	M. S.
NUTS,	STUDS, GLAND NUT M. S.
SEATS, SEALS, PACKING	PTFE
BALL	S S 202/304
STEM	SS 410
BODY	CAST IRON
BODY GASKET	C.A.F.
BONNET	CAST IRON
"	-
CONNECTOR	-
-	LEVER
-	NUT
-	LOCK
GLAND	SEAL -
-	SPINDLE —
-	SPINDLE SEAL-
-	SEAT PACKING -
"BALL*	-
-	BODY
STUD	-
BOSS	-
LAo	-
