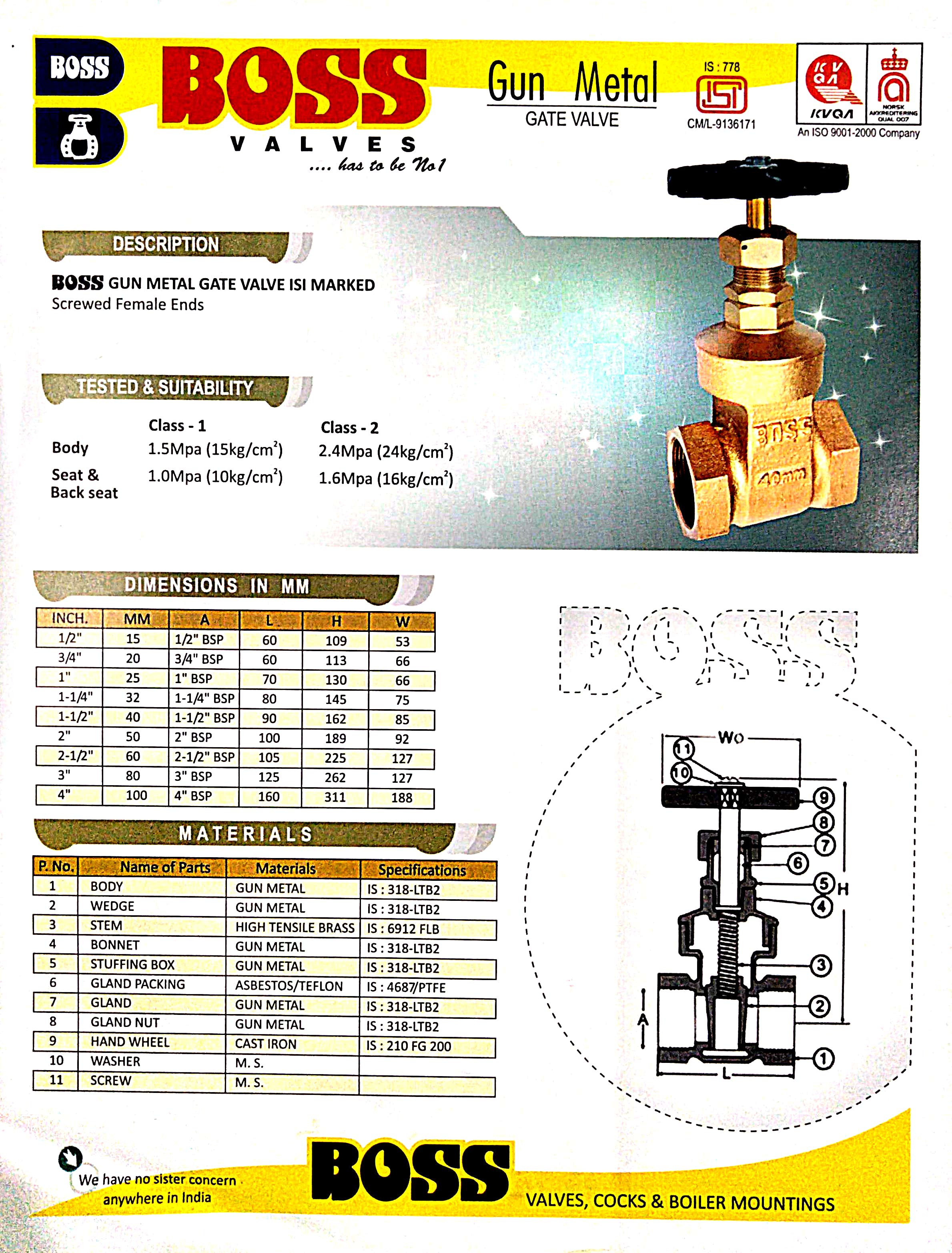

BOSS GUN METAL GATE VALVE

BOSS GUN METAL GATE VALVE ISI MARKED Screwed Female Ends

Design Standards

DESIGN AND MANUFACTURING	IS : 210, IS : 318, IS : 4687, IS: 318, IS: 778
VALVE FACE TO FACE	As per Standard
INSPECTION & TESTING	Class - 1 / Body 1.5Mpa (15kg/cт') / Seat & 1.0Mpa (10kg/cт')

Key Features

Hand Wheel Operated

Screwed Female Ends

Technical Testing

Class - 1	Verified as per BOSS GUN METAL GATE VALVE Quality Standards
Body 1.5Mpa (15kg/cт')	Verified as per BOSS GUN METAL GATE VALVE Quality Standards
Seat & 1.0Mpa (10kg/cт')	Verified as per BOSS GUN METAL GATE VALVE Quality Standards
Back seat	Verified as per BOSS GUN METAL GATE VALVE Quality Standards
Class - 2	Verified as per BOSS GUN METAL GATE VALVE Quality Standards
2.4Mpa (24kg/ст')	Verified as per BOSS GUN METAL GATE VALVE Quality Standards
1.6Mpa (16kg/cm')	Verified as per BOSS GUN METAL GATE VALVE Quality Standards
Gun Metal IS: 778	Verified as per BOSS GUN METAL GATE VALVE Quality Standards
GA TE VALVE CM/L-9136171 QUAL 007	Verified as per BOSS GUN METAL GATE VALVE Quality Standards
An ISO 9001-2000 Company	Verified as per BOSS GUN METAL GATE VALVE Quality Standards
g n s t	Verified as per BOSS GUN METAL GATE VALVE Quality Standards
ADam	Verified as per BOSS GUN METAL GATE VALVE Quality Standards

Dimension Table

12" 15 1/2" BSP 60 109 53

3/4"

20 3/4" BSP 60 113 66

1" 25 1 " BSP 70 130 66

1-1/4" 32 1-1/4" BSP

80 145 75

1-12" 40 1-12" BSP 90 162 85

50 2 " BSP 100 189 92

2-1/2" 60 2-1/2" BSP 105 225 127

3"

80 3" BSP 125 262 127

4" 100 4" BSP 160 311 188

Temperature Rating

Standard Industrial Temperature

Materials of Construction

Part Name	Specification
WEDGE	GUN METAL I S : 318-LTB2
STEM HIGH TENSILE	BRASS I S : 6912 FLB
BONNET	GUN METAL I S : 318-LTB2
STUFFING BOX	GUN METAL IS : 318-LTB2
GLAND PACKING	ASBESTOS/TEFLON IS : 4687/PTFE
GLAND	GUN METAL IS : 318-LTB2
GLAND NUT	GUN METAL IS : 318-LTB2
HAND WHEEL	CAST IRON IS : 210 FG 200
WASHER	M. S.
SCREW	M. S.
