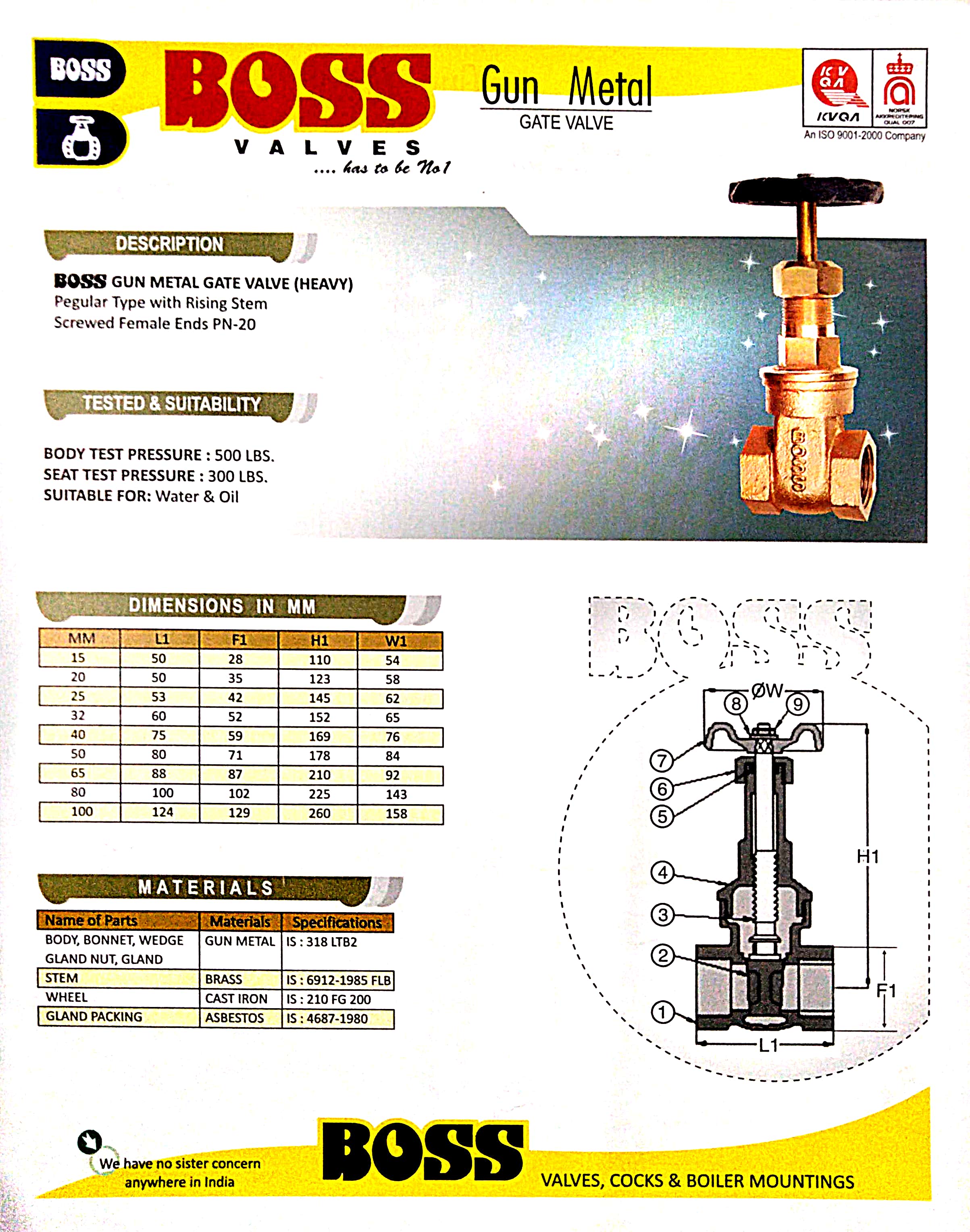

BOSS GUN METAL GATE VALVE

BOSS GUN METAL GATE VALVE (HEAVY) Pegular Type with Rising Stem Screwed Female Ends PN-20

Design Standards

DESIGN AND MANUFACTURING	IS : 210, IS : 318, IS : 4687-1980, IS : 6912-1985, PN-20
VALVE FACE TO FACE	As per Standard
INSPECTION & TESTING	BODY TEST PRESSURE: 500 LBS. / SEAT TEST PRESSURE: 300LBS.

Key Features

Rising Stem Design

Screwed Female Ends

Technical Testing

BODY TEST PRESSURE: 500 LBS.	Verified as per BOSS GUN METAL GATE VALVE Quality Standards
SEAT TEST PRESSURE: 300LBS.	Verified as per BOSS GUN METAL GATE VALVE Quality Standards

Dimension Table

MM L1 F1 H1 W1
15 50 28 110 54
20 50 35 123 58
25 53 42 145 62
32 60 52 152 65
40 75 59 169 76
50 80 71 178 84
65 88 87 210 92
80 100 102 225 143
100 124 129 260 158
8

Temperature Rating

Standard Industrial Temperature

Materials of Construction

Part Name	Specification
Name	of Parts
BODY,	BONNET, WEDGE
GLAND	NUT, GLAND
S	T E M WHEEL
GLAND	PACKING
BRASS	-
CAST	IRON
ASBESTOS	-
S	p e c i fi c a t i o n s IS : 318 LTB2
IS	: 6912-1985 FLB
IS	: 210 FG 200
IS	: 4687-1980
