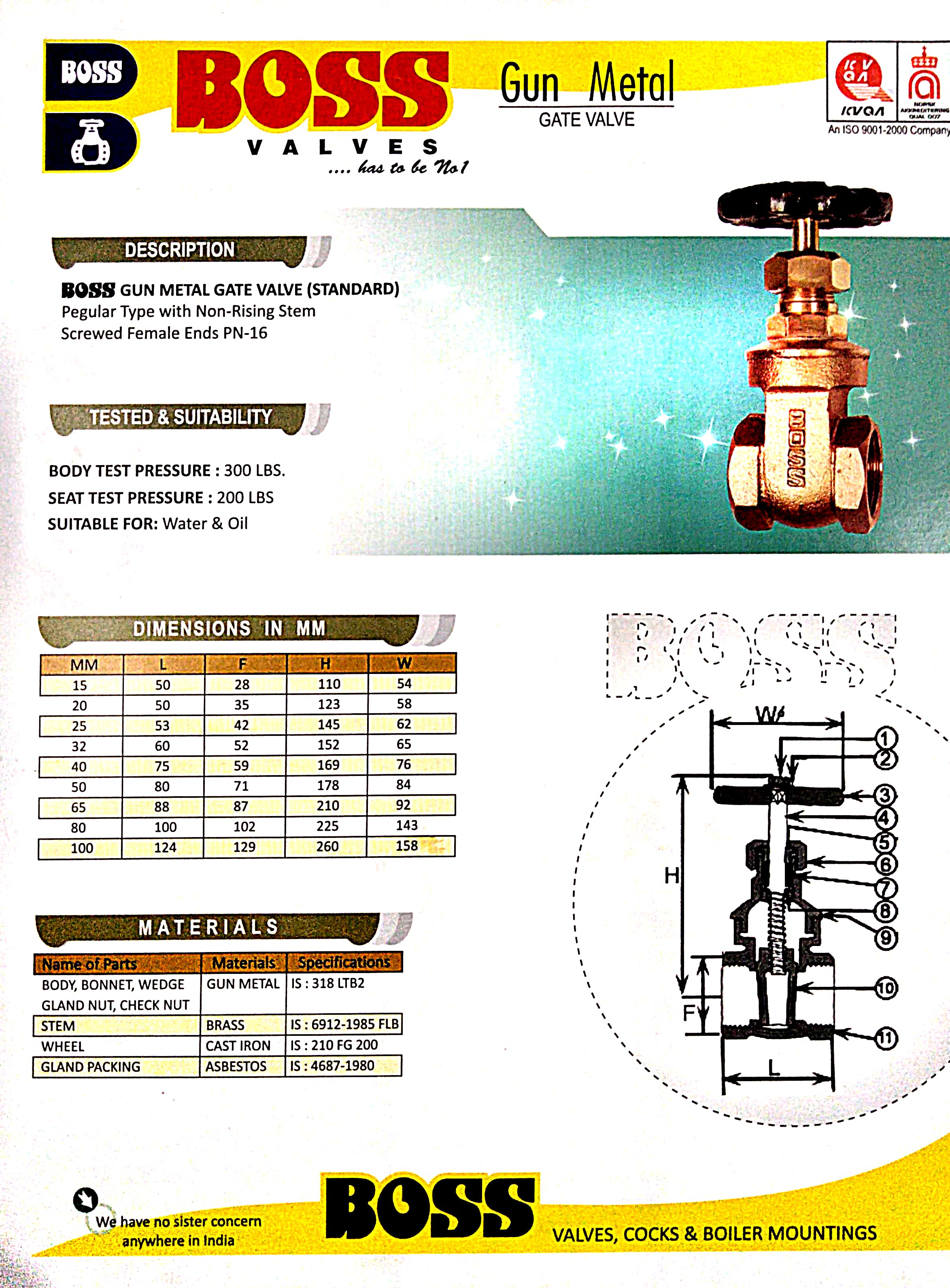

BOSS GUN METAL GATE VALVE

BOSS GUN METAL GATE VALVE (STANDARD) Pegular Type with Non-Rising Stem Screwed Female Ends PN-16

Design Standards

DESIGN AND MANUFACTURING	IS : 4687-1980, IS : 6912-1985, IS: 318, PN-16
VALVE FACE TO FACE	As per Standard
INSPECTION & TESTING	BODY TEST PRESSURE: 300 LBS. / SEAT TEST PRESSURE: 200 LBS / S U I T A B L E FOR: Water & Oil 00.

Key Features

Rising Stem Design

Non-Rising Stem

Screwed Female Ends

Technical Testing

BODY TEST PRESSURE: 300 LBS.	Verified as per BOSS GUN METAL GATE VALVE Quality Standards
SEAT TEST PRESSURE: 200 LBS	Verified as per BOSS GUN METAL GATE VALVE Quality Standards
S U I T A B L E FOR: Water & Oil 00.	Verified as per BOSS GUN METAL GATE VALVE Quality Standards

Dimension Table

15 50 28 110 54
20 50 35 123 58
25 53 42 145 62
32 60 52 152 65
40 75 59 169 76
50 80 71 178 84
65 88 87 210 92
80 100 102 225 143
100 124 129 260 158

Temperature Rating

Standard Industrial Temperature

Materials of Construction

Part Name	Specification
GLAND	NUT, CHECK NUT
GUN	METAL IS: 318 LTB2
STEM	BRASS IS : 6912-1985 FLB
WHEEL	CAST IRON I S : 210 FG 200
GLAND PACKING	ASBESTOS IS : 4687-1980
