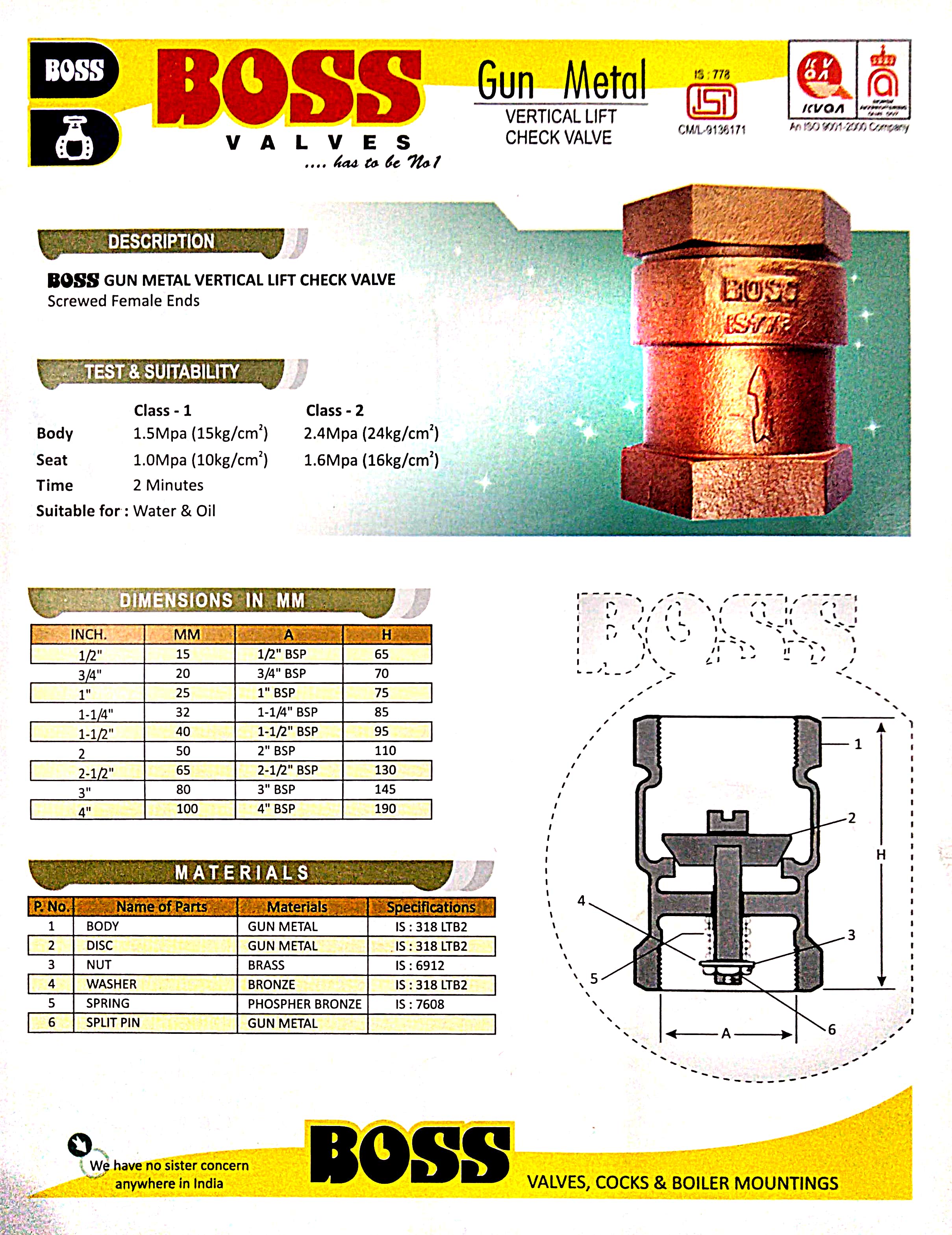

BOSS GUN METAL VERTICAL LIFT CHECK VALVE Screwed Female Ends TEST & SUITABILITY Class - 1 Body 1.5Mpa (15kg/cт') Seat 1.0Mpa (10kg/cm') Time 2 Minutes Suitable for: Water & Oil Class - 2 2.4Mpa (24kg/ст') 1.6Mpa (16kg/cm') BOSS ISTIE

Design Standards

DESIGN AND MANUFACTURING	IS : 318, IS : 7608, IS: 6912, IS: 778
VALVE FACE TO FACE	As per Standard
INSPECTION & TESTING	Class - 1 / Body 1.5Mpa (15kg/cт') / Seat 1.0Mpa (10kg/cm')

Key Features

Screwed Female Ends

Technical Testing

Class - 1	Verified as per BOSS VALVE Quality Standards
Body 1.5Mpa (15kg/cт')	Verified as per BOSS VALVE Quality Standards
Seat 1.0Mpa (10kg/cm')	Verified as per BOSS VALVE Quality Standards
Time 2 Minutes	Verified as per BOSS VALVE Quality Standards
Class - 2	Verified as per BOSS VALVE Quality Standards
2.4Mpa (24kg/ст')	Verified as per BOSS VALVE Quality Standards
1.6Mpa (16kg/cm')	Verified as per BOSS VALVE Quality Standards
BOSS	Verified as per BOSS VALVE Quality Standards
ISTIE	Verified as per BOSS VALVE Quality Standards

Dimension Table

12" 15 1/2" BSP 65

3/4" 20 3/4" BSP 70

1 " 25 1 " BSP 75

1-1/4" 32 1-1/4" BSP 85

1-12" 40 1-1/2" BSP 95

50 2 " BSP 110

2-1/2" 65 2-1/2" BSP 130

3" 80 3 " BSP 145

4" 100 4" BSP 190

Temperature Rating

Standard Industrial Temperature

Materials of Construction

Part Name	Specification
BODY	GUN METAL IS : 318 LTB2
DISC	GUN METAL IS : 318 LTB2
NUT	BRASS IS: 6912
WASHER	BRONZE IS : 318 LTB2
SPRING PHOSPHER	BRONZE IS : 7608
SPLIT PIN	GUN METAL —A-
