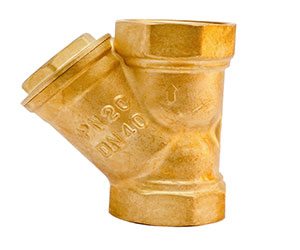

Brass Y-Type Strainer BSP
Brass Y-Type Strainer with BSP Female Threads. 45° screen angle with removable SS perforated screen. Suitable for fire protection, water, and industrial piping.
Applications
Features & Benefits
Y-Type Design
45° screen angle provides efficient inline filtration with minimal pressure drop and easy maintenance access.
Brass Construction
Manufactured from CW617N brass (EN 12165) for excellent corrosion resistance and durability.
Removable Screen
SS 304 perforated screen is easily removable for cleaning and maintenance without system shutdown.
High Pressure Rating
20 Bar pressure rating suitable for fire protection and industrial water service applications.
Request Detailed Quotation
Technical Specifications
Type
Brass Y-Type Strainer
Flow Direction
Inline
Screen Angle
45°
Screen Type
Removable SS Perforated Screen
End Connection
BSP Female Threads (ISO 228-1)
Pressure Rating
20 Bar
Temperature Range
–100°C to 100°C
Body Material
CW617N Brass (EN 12165)
Filter Material
SS-304 (CF8)
Bill of Material
| S. No. | Description | Material | Technical Standard |
|---|---|---|---|
| 1 | End Adaptor | Brass | CW617N as per EN 12165 |
| 2 | Body | Brass | CW617N as per EN 12165 |
| 3 | Ring / Seal | NBR | Nitrile Rubber, Oil & Water Resistant |
| 4 | Strainer | Stainless Steel 304 | ASTM A351 CF8 |

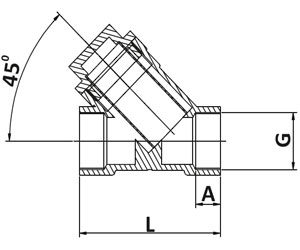

Dimensions (All dimensions in mm unless otherwise specified)
| SIZE (Inch) | DN | A (mm) | G (BSP Thread) | L (mm) |
|---|---|---|---|---|
| 1/2" | 15 | 10.0 | 1/2" | 52.0 |
| 3/4" | 20 | 13.0 | 3/4" | 65.0 |
| 1" | 25 | 14.0 | 1" | 75.0 |
| 1-1/4" | 32 | 18.0 | 1-1/4" | 89.5 |
| 1-1/2" | 40 | 20.0 | 1-1/2" | 103.5 |
| 2" | 50 | 23.0 | 2" | 125.0 |
Key Features
- Y-Type design with 45° screen angle for efficient inline filtration
- Removable SS 304 perforated screen for easy cleaning
- CW617N brass body (EN 12165) for corrosion resistance
- BSP Female threaded connections (ISO 228-1)
- 20 Bar pressure rating suitable for fire protection service
- Wide temperature range: –100°C to 100°C
- NBR seals for oil and water resistance
- Compact design for space-constrained installations
- Low maintenance requirements
- Suitable for water, fire protection, and industrial piping
Applications
Fire Protection Systems
Protects fire sprinkler systems and fire lines from debris and particulates
Water Distribution
Filters water supply lines in residential and commercial buildings
Industrial Piping
General purpose filtration in process piping and utility systems
HVAC Systems
Protects pumps, valves, and equipment in heating and cooling systems
