Project snapshot
GujaratPlace of supply
Oil & GasIndustry
Pneumatic DAKGV actuation
1 + 2Qty (KGV + NRV)
1. Pneumatically actuated knife edge gate valve
Source: quotation & datasheet for DN100 Class 150 flameproof pneumatic package; proforma / delivery note confirm pneumatic double-acting supply.
| Parameter | Specification |
|---|---|
| Valve type | Pneumatically actuated knife edge gate valve, lug type, uni-directional |
| Size / rating | DN100 (4 inch), ANSI Class 150 |
| End connection | Lug type, drilled to ANSI B16.5 Class 150 |
| Body / blade | CF8 / SS304 body; SS304 blade ground and polished |
| Seat | Metal-to-metal (integral), sludge duty |
| Design standard | MSS-SP81 / API 598 |
| Service | Tank bottom outlet isolation — solid-laden sludge media |
| Flow direction | Uni-directional |
| Actuator | Double-acting pneumatic cylinder, side-mounted (horizontal), ISO 5211 |
| Solenoid | 5/2 way, 24 VDC, Ex d IIC T6 IP66 flameproof enclosure |
| Limit switches | Mechanical SPDT open/close in flameproof enclosures — PLC dry-contact feedback |
| Air prep | FRL unit; speed controllers; junction box with cable glands; manual override; air tubing |
| Air supply | 5 to 7 bar dry filtered air |
| Hazardous area | Electrical accessories suitable for Zone 1, any gas group |
| PLC interface | 24 VDC solenoid command; dry-contact position feedback |
| Testing | API 598 / MSS-SP81 hydrostatic + actuator function test |
| Certification | EN 10204 3.1 MTC; Ex certificates for solenoid & limit switches; GA + IOM |
| Quantity | 1 complete assembled set |

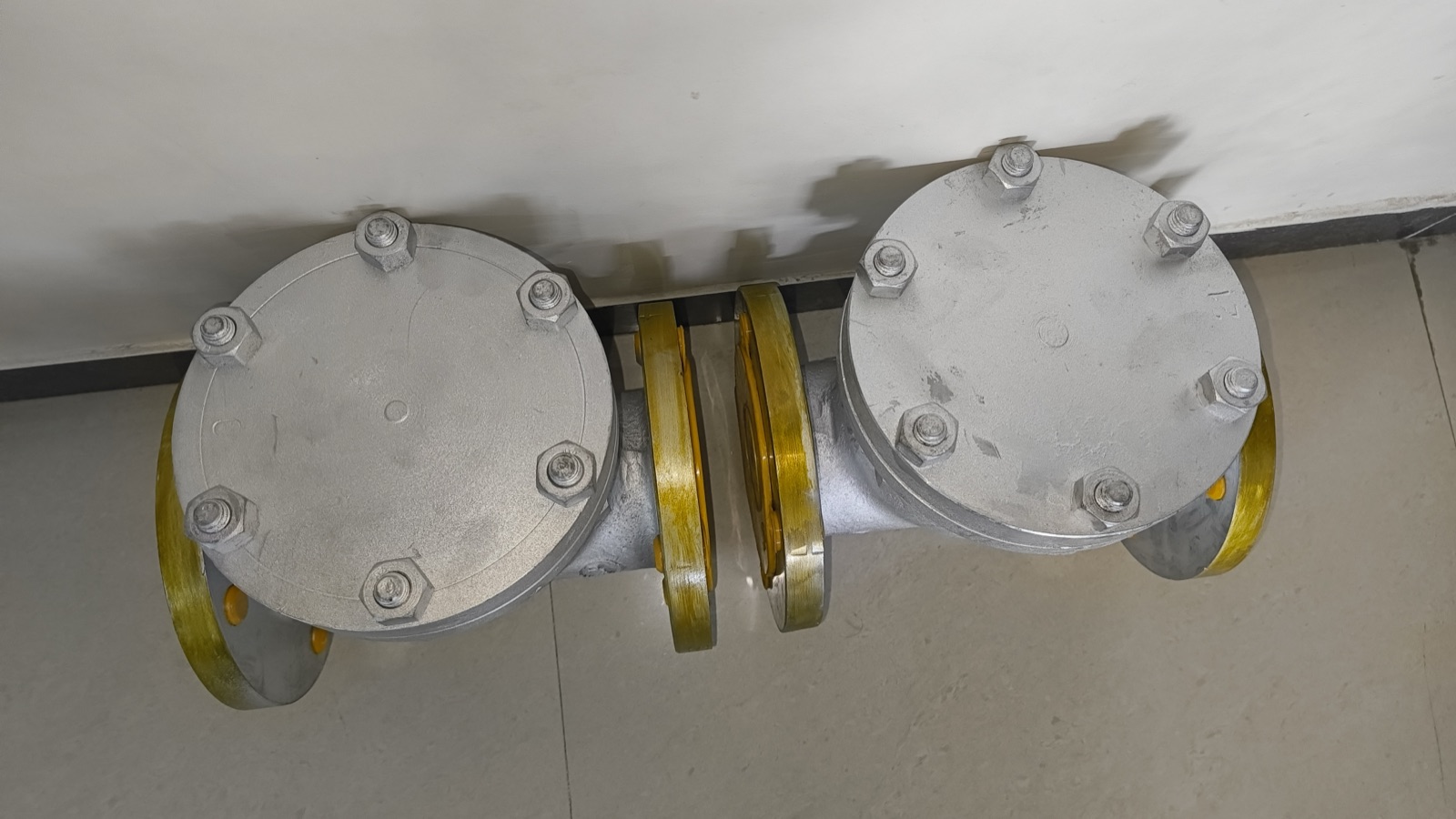

2. Flanged swing check valve (NRV)
Source: quotation and datasheet — 3 inch Class 150 WCB swing check for slop oil / crude backflow prevention.
| Parameter | Specification |
|---|---|
| Valve type | Swing check (non-return), flanged, bolted cover |
| Size | 3 inch (DN80, 76.2 mm port) |
| Pressure class | ANSI Class 150 |
| Body | Cast Carbon Steel ASTM A216 Gr. WCB |
| Disc / clapper | ASTM A216 WCB |
| Seat ring | AISI 410 (hardened) |
| Hinge / hinge pin | WCB / AISI 410 |
| Cover | ASTM A216 WCB, bolted |
| Cover stud & nut | ASTM A193 Gr. B7 / ASTM A194 Gr. 2H |
| Gasket | SS304 spiral wound with Graphoil filler |
| End connection | Flanged ANSI B16.5 Class 150 Raised Face (RF 1.5 mm) |
| Face-to-face | 241 mm per ANSI B16.10 |
| Flange OD / PCD | OD 190.5 mm · PCD 152.4 mm · 4 × 19.1 mm bolt holes |
| Manufacturing std | BS 1868 / ANSI B16.34 |
| Testing std | API 598 / BS 5146 |
| Hydro body / seat | 30 kg/cm² / 22 kg/cm² · Air seat 7 kg/cm² |
| Media | Slop oil / crude (hydrocarbon) |
| Operating duty | 8 to 15 bar · ambient to 80 °C |
| Cracking pressure | Negligible (gravity swing type) |
| Quantity | 2 Nos |
