What is a check valve and why is it essential for pump protection in the Middle East?

A check valve (non-return valve) automatically prevents reverse flow when the upstream pressure drops below downstream pressure. This protects pumps, compressors, and other equipment from damage caused by backflow, water hammer, and reverse rotation. In Saudi Arabian oil fields and UAE industrial plants, check valves are critical for protecting centrifugal pumps in seawater cooling systems, fire protection pumps, and pipeline booster stations. API 594 and API 6D specify the design and testing requirements for check valves used in oil and gas service.

What are the different types of check valves and their applications?

Swing check valves feature a hinged disc that swings open with forward flow and closes by gravity when flow stops. They are used in horizontal pipelines with low velocity flow. Spring-loaded check valves (silent check valves) use a spring to close rapidly, preventing water hammer in high-rise buildings and pump discharge lines. For horizontal and vertical installation, consider spring-loaded wafer check valves. For UAE desalination plants and Saudi Arabian seawater intake systems, swing check valves with NAB (Nickel Aluminium Bronze) bodies are commonly specified for their anti-biofouling properties. Our SS 304 NRV lift type check valve is ideal for fire protection lines where quick-closing response is essential.

What is water hammer and how do check valves prevent it?

Water hammer occurs when a sudden stop in fluid flow causes a pressure surge that can damage pipes, valves, and equipment. This commonly happens when a pump shuts down and the check valve closes too slowly, allowing the fluid column to reverse and strike the valve disc. To prevent water hammer, use spring-loaded check valves (silent check) that close rapidly before flow reversal occurs. For critical Saudi Arabian water injection pipelines, a pre-closed check valve (with spring assist) is recommended. Proper sizing using the API 12F method and avoiding installation near elbows helps minimize water hammer effects.

What are the key applications for SS 304 NRV check valves in Middle East projects?

SS 304 NRV lift type check valves are widely used in Middle East industrial projects for: fire protection systems in commercial buildings and oil/gas facilities across Saudi Arabia and UAE; water supply pipeline protection in Dubai, Riyadh, and Doha; HVAC systems in commercial complexes; steam distribution systems in petrochemical plants; and booster pump protection in desalination plants. The 1/2 inch BSP connections make them ideal for smaller diameter fire sprinkler branch lines and water supply connections.

What documentation and certifications are provided with export shipments to KSA and UAE?

Every export shipment to Saudi Arabia, UAE, Qatar, Kuwait, Bahrain, or Oman includes: EN 10204 3.1 material certificates (Type 3.1) with batch identification; API 598 seat and shell test reports; dimensional inspection certificates; ASME B16.34 compliance documentation; and Certificate of Origin (Form A or CO). For Saudi ARAMCO projects, we provide SASO-compliant documentation and can coordinate with SGS or Bureau Veritas for pre-shipment inspection. Our SS 304 NRV valves meet SABER compliance requirements for Saudi Arabian import.

What are the API 594 testing requirements for check valves?

API 594 covers wafer, lug, and double-flange check valves and requires hydrostatic shell testing at 1.5 times the rated pressure, with seat testing at 1.1 times rated pressure. For Saudi ARAMCO projects, check valves must comply with API 594 and demonstrate compliance with API 598 leak testing. We provide EN 10204 3.1 material certificates, ASME B16.34 compliance documentation, and complete test reports including shell strength, seat tightness, and disc closure time. Our API 594 check valves are suitable for Class 150 through Class 600 ratings in sizes 2 inches to 60 inches.

How do I install SS 304 NRV lift type check valve with BSP connections?

Install the SS 304 NRV valve with the flow direction arrow pointing in the direction of flow. For horizontal type, mount with the hinge pin at the top. Apply Teflon tape or pipe sealant to the male BSP threads and hand-tighten before final wrench tightening. Do not over-tighten. Install at least 5 pipe diameters downstream of pumps or turbulence sources. For fire protection systems in UAE and Saudi Arabia, ensure compliance with NFPA 20 (pump discharge) and local civil defense requirements.

What maintenance is required for check valves in industrial applications?

Check valves are passive devices requiring minimal maintenance, but regular inspection extends service life. Annual inspection should verify the disc moves freely, seats properly, and the hinge pin shows no signs of corrosion or wear. For spring-loaded check valves, confirm the spring tension is within specifications. In seawater service common to Gulf industrial plants, inspect for calcareous deposits and marine growth on internal components. Replace worn seats, damaged discs, and corroded springs promptly to prevent failure. For critical fire protection systems in UAE high-rise buildings, NFPA 25 requires annual inspection and testing.

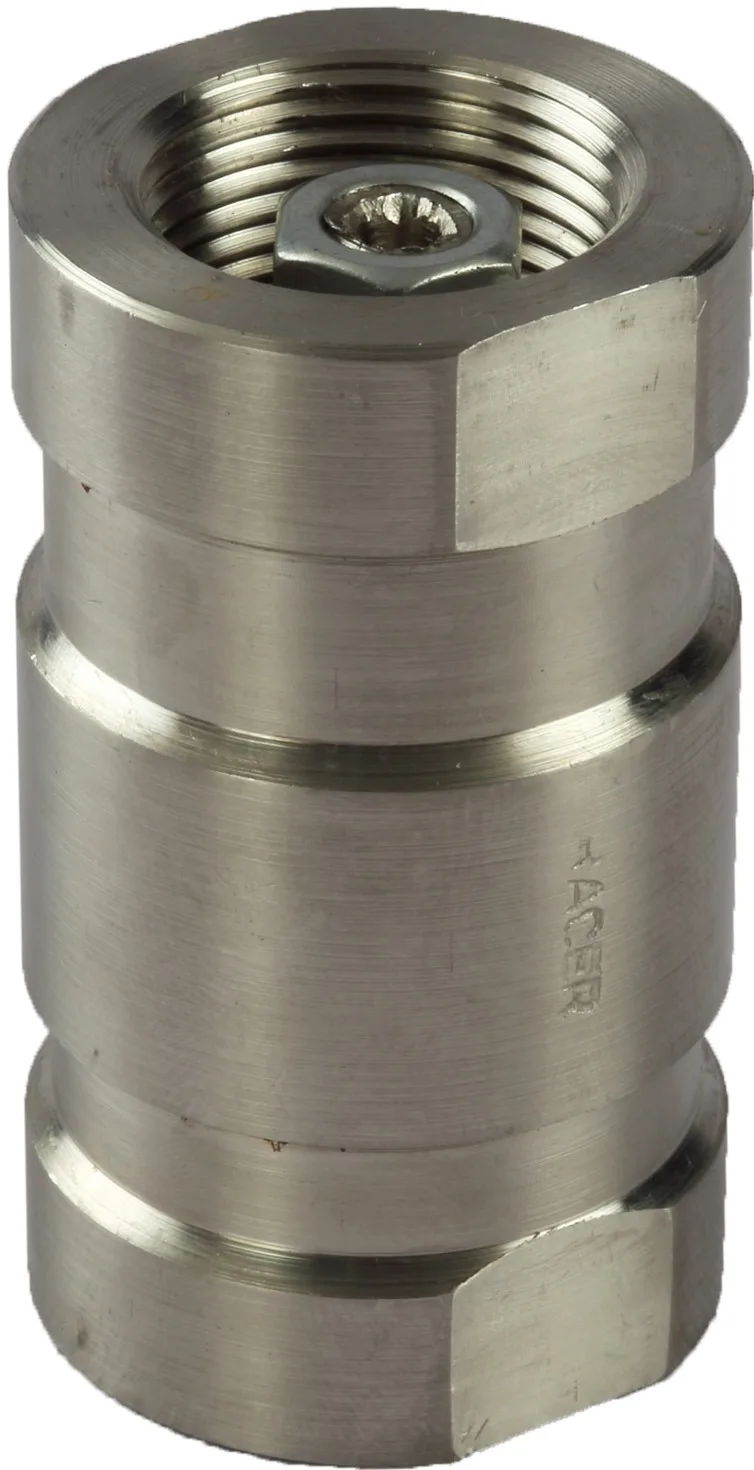

Vertical Type

SS 304 NRV Vertical Non-Return Valve BSP

Horizontal Type

SS 304 NRV Horizontal Non-Return Valve BSP

Check Valves

SS 304 NRV Non-Return Valve BSP – 1/2" Lift Type Check Valve

Name: SS 304 NRV Non-Return Valve BSP - 1/2 Inch Lift Type Check Valve
Brand: Supreme Valves
SKU: SV-SSNRVCHECKVALVEBSP
Availability: InStock
Rating: 4.8 (127 reviews)

Stainless Steel 304 Non-Return Valve (NRV) with 1/2 inch BSP female connections. Lift type design with ASTM A351 CF8 construction. Available in horizontal and vertical configurations for fire protection lines, water supply systems, and industrial piping. Export to Saudi Arabia KSA, UAE, Qatar, Kuwait, Bahrain, and Oman with full documentation.

Available Types

Horizontal Vertical

Standard Size: 1/2" BSP (F) × 1/2" BSP (F)

Request Enquiry WhatsApp Download Datasheet

Materials of Construction (MOC)

Component	Material Specification
Body & Bonnet	Stainless Steel (ASTM A351 Gr. CF8/CF8M)
Stem / Spindle	SS 304 / SS 316
Seat / Trim	PTFE / RPTFE / Integral

Technical Specifications

Parameter	Specification / Standard
Manufacturing / Design Standard	ASME B16.34 / API 603 / API 6D
Testing Standard	API 598 / EN 12266-1
Pressure Rating	Class 150 to Class 600 / PN16 / PN40

Material of Construction

S.N.	Parts Name	Material	Qty
01	Body	ASTM A 216 Gr. WCB	1
02	Cover	ASTM A 216 Gr. WCB	1
03	Hinge	ASTM A 216 Gr. WCB	1
04	Sear Ring	AISI 410/ASTM A 217 Gr. Ca15	1
05	Disc	ASTM A 217 Gr. Ca15/WCB+13 Cr. Facing	1
06	Disc Returning Nut	AISI 304	1
07	Disc Washer	AISI 304/410	1
08	Cotter Pin	AISI 304	1
09	Hinge Pin	AISI 410	1
10	Plug	Carbon Steel	1
11	Cover Gasket	Asbestos Filler SS 304 Spiral Wounded/Caf	1
12	Cover Studs	M.S.	Req.
13	Cover Nuts	M.S.	Req.
14	Lifting Eye Ball	Carbon Steel	1

Testing Details & Standards

Class: 150
Hydro Test Pressure Body: 425 PSI
Seat: 300 PSI
Max Temp: 200°C
Air Test: Seat 80 PSI ± PSI

Dimension Tables

Size	FB	L	H	ØD	B	ØG	ØJ	PSD	N
25	25	127	95	108	11.18	50.8	15.75	79.25	04
32	32	139.8	102	117	12.7	63.5	15.75	89	04
40	38	165.2	110	127	14.22	73.15	15.75	98.5	04
50	51	203	130	154.4	15.75	92	19.05	120.65	04
65	64	216	140	178	17.53	104.65	19.05	139.7	04
80	76	241.3	162	190.5	19.05	127	19.05	152.4	04
100	102	292	187	228.6	23.88	157.23	19.05	190.5	08
125	127	330	217	254	23.88	185.67	22.35	216	08
150	152	355.6	235	279.4	25.4	215.9	22.35	241.3	08
200	203	465.3	285	343	28.45	270	22.35	298.45	08
250	254	622.3	338	406	30.23	324	25.40	362	12
300	305	698.5	380	483	31.75	381	25.40	432	12

Frequently Asked Questions

What is this valve and what are its primary applications?

This industrial valve is manufactured by Supreme Valves India, a leading exporter of quality valves to Saudi Arabia, UAE, Qatar, Kuwait, Bahrain, and Oman since 2005. The valve is designed for specific applications in water treatment, oil and gas, fire protection, HVAC, and chemical process systems. Our export team provides complete technical documentation, material test certificates (MTC), and competitive pricing for Middle Eastern and global industrial buyers with full NFPA, API, ASME, and EN standard compliance.

What pressure and temperature ratings are available for this valve?

Pressure ratings typically range from Class 150 to Class 600 (PN20-PN100) depending on valve type and size. Temperature ratings depend on seat and body materials: standard PTFE seats are rated to 200 deg C, while metal seats extend service to 500+ deg C. Our engineering team can recommend the correct rating for your specific operating conditions, applicable standards (ASME B16.34, API 600/602, EN standards), and any pressure-temperature derating requirements for your application.

What materials are used in this valve's construction?

Valve body materials include Cast Iron (ASTM A126), Ductile Iron (ASTM A395), Carbon Steel (ASTM A216 WCB), Stainless Steel (CF8/CF8M), Bronze (C83600), and specialty alloys. Internal trim materials (SS304, SS316, bronze, Inconel) are selected for fluid compatibility and operating conditions. Material test certificates (MTC) per ASTM/ASME standards are provided with every export shipment, along with pressure test reports and dimensional inspection certificates.

How do I install and maintain this valve?

Installation should follow the valve's flow direction arrow and applicable standard (ASME B16.10 for face-to-face dimensions). All flanged connections require proper gaskets (full-face for cast iron, ring gaskets for steel). Initial inspection should verify stem movement is smooth and the valve seats properly. For maintenance, consult the Installation, Operation, and Maintenance (IOM) manual. Common maintenance includes periodic stem lubrication, packing adjustment or replacement, and seat inspection. Never use the valve handwheel or actuator to force a stuck gate or ball - this can damage seating surfaces.

How do I order this valve and what are the delivery terms?

Contact our export sales team via WhatsApp (+91 97732 78770) or email (supremevalvesindia@gmail.com) with your valve specification: type, size, pressure rating, body and trim materials, connection type, and quantity. We provide estimates on origin Ahmedabad or CIF/CFR to your port. Standard delivery is 3-5 weeks for in-stock items, 6-8 weeks for custom manufacture. We handle export documentation including Form A or CO (Certificate of Origin), commercial invoice, packing list, and pre-shipment inspection certificates (SGS or Bureau Veritas) upon request.
