Did Supreme Valves export rubber-lined lug butterfly valves to Al Jubail, Saudi Arabia?
Yes. Supreme Valves India manufactured and exported ten DN80 (3 inch) Class 150 WCB concentric lug butterfly valves to Al Jubail Industrial City — three CPE rubber lined and seven EPR rubber lined — with body and disc both rubber lined, moulded seat, AISI 410 stem, hand-lever operator, HS code 8481 80 30, manufactured and hydrotested in Ahmedabad.
Project snapshot
Supreme Valves India (Supreme Enterprise), Ahmedabad, Gujarat, India, manufactured and exported ten DN80 (3 inch) Class 150 concentric lug type butterfly valves with rubber lining on body and disc to Al Jubail Industrial City, Kingdom of Saudi Arabia. Scope: three CPE-lined and seven EPR-lined units, ASTM A216 WCB body and disc, moulded elastomer seat, AISI 410 stem, hand-lever operated, lug ends for ASME B16.5 Class 150 flanges, face-to-face 57 mm, HS code 8481 80 30. Manufacture and hydrostatic testing were completed in Ahmedabad; shipment used LUT export documentation from India. RFQ: get-valve-quote-india.html · +91 97732 78770 · info@supremevalves.in.
Valve scope
Two lining options were supplied for the same mechanical envelope so the plant could match elastomer to media. On both options the body and disc are rubber lined (centric disc butterfly with single-piece rubber-lined lug body and moulded seat):
- CPE rubber lined, lug type, lever operated — 3 pieces. WCB body with CPE lining, WCB disc with CPE lining, CPE moulded seat, AISI 410 stem, hand lever. Face-to-face 57 mm (2-1/4 inch) per MSS-SP-67 / API 609 short pattern practice.
- EPR rubber lined, lug type, lever operated — 7 pieces. WCB body with EPR lining, WCB disc with EPR lining, EPR moulded seat, AISI 410 stem, hand lever. Same face-to-face and Class 150 lug drilling.
Both lines were die-stamped for traceability at body. GA drawings for the CPE and EPR patterns are linked below.
GA drawings
Download the general arrangement drawings issued for this DN80 Class 150 lug butterfly valve shipment:
Technical summary
| Parameter | Specification |
|---|---|
| Valve type | Concentric lug butterfly valve, lever operated, single-piece rubber-lined body |
| Size / rating | DN80 (3 inch), Class 150 / PN10 |
| Body | ASTM A216 Gr. WCB, rubber lined (CPE or EPR) |
| Disc | WCB, rubber lined (CPE or EPR) — same lining as body |
| Seat | Moulded CPE (3 nos) / moulded EPR (7 nos) |
| Stem | AISI 410 stainless steel |
| Ends | Lug pattern for ASME B16.5 Class 150 flanges |
| Face-to-face | 57 mm (2-1/4 inch) |
| Marking | MSS-SP-25; body die stamp for heat traceability |
| HS code | 8481 80 30 (butterfly valves) |
| Export basis | LUT export from India to Al Jubail Industrial City |
Why this configuration
Lug type concentric butterfly valves are compact isolation valves for Class 150 utility lines. Rubber lining on both the body and the disc, with a moulded elastomer seat, gives tight shut-off on water, cooling, and light chemical service. CPE and EPR cover different media compatibility, so the same DN80 lug envelope could be stocked for two process duties.
Manufacture and hydrostatic testing were completed at our Ahmedabad works. Export packing, commercial documentation, and dispatch to Al Jubail followed our standard Middle East export workflow.
Outcome

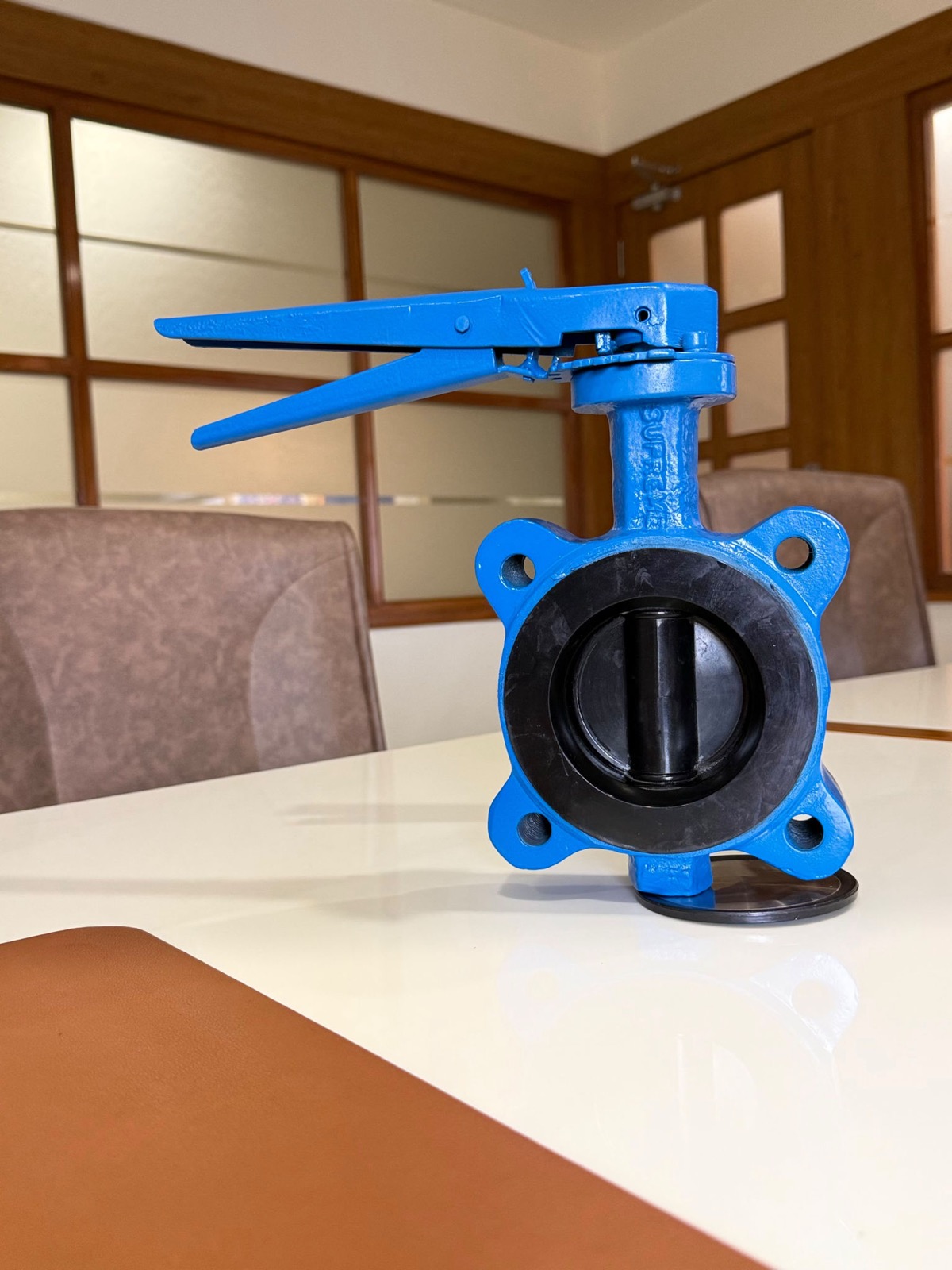

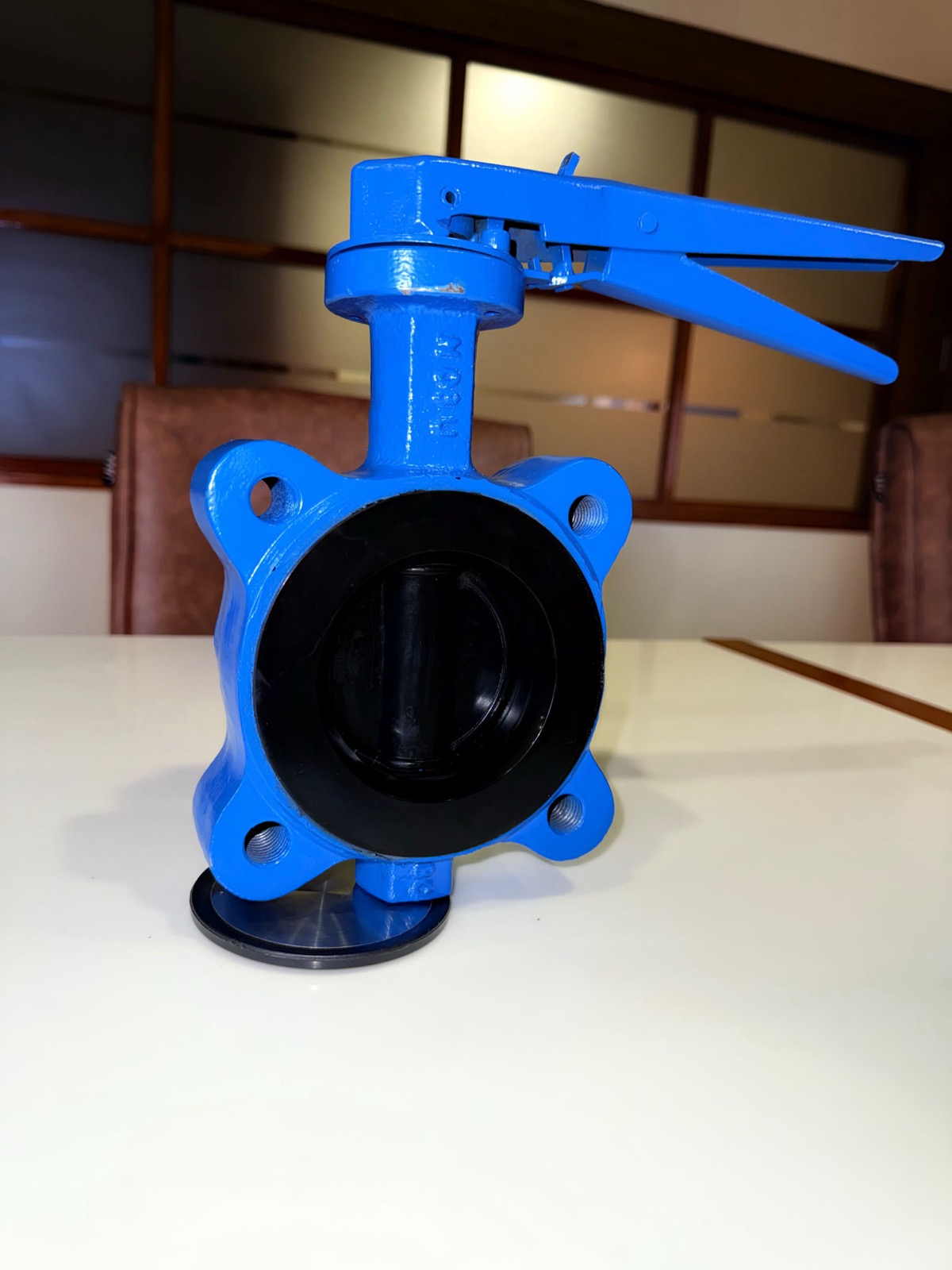

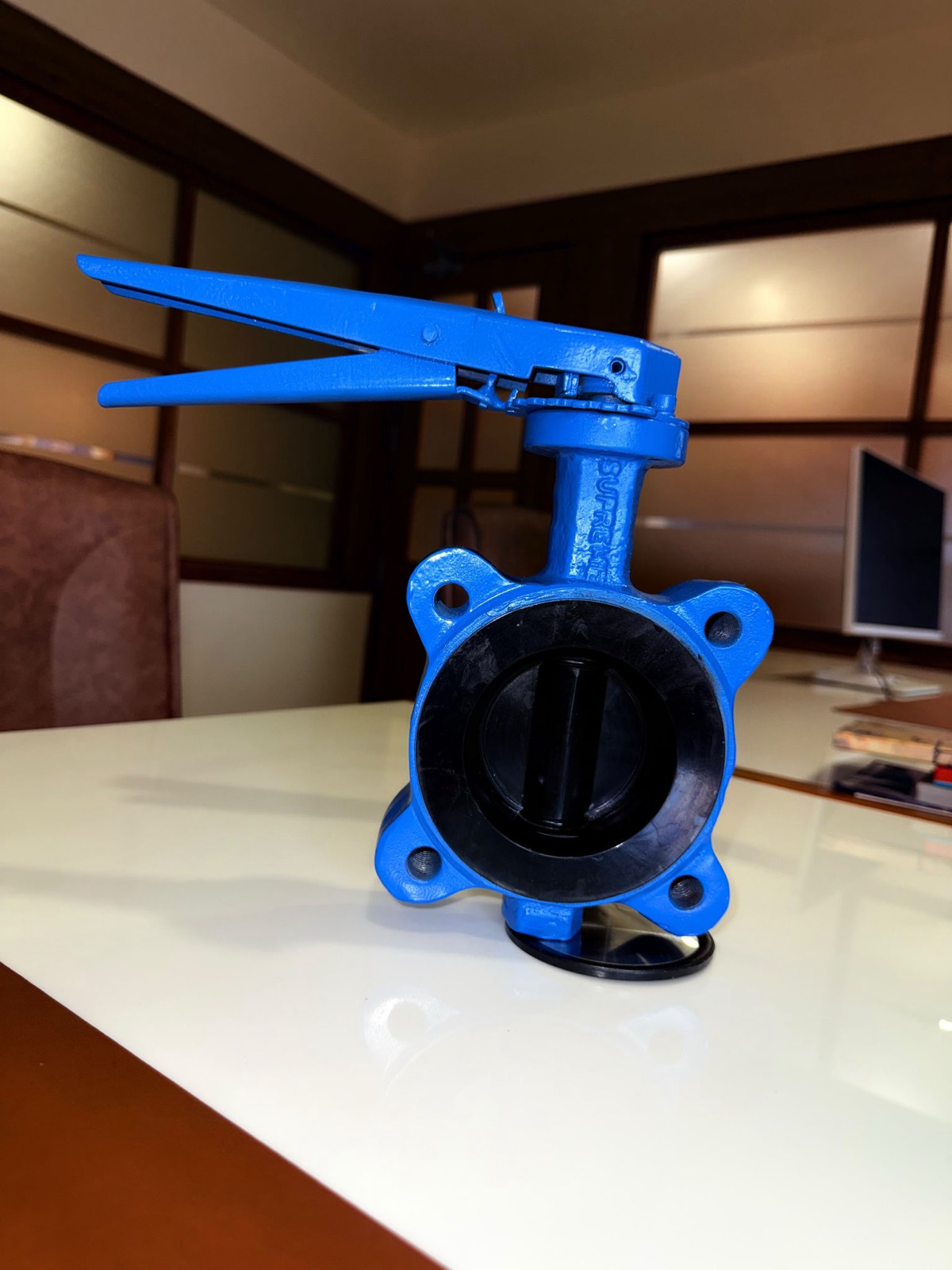

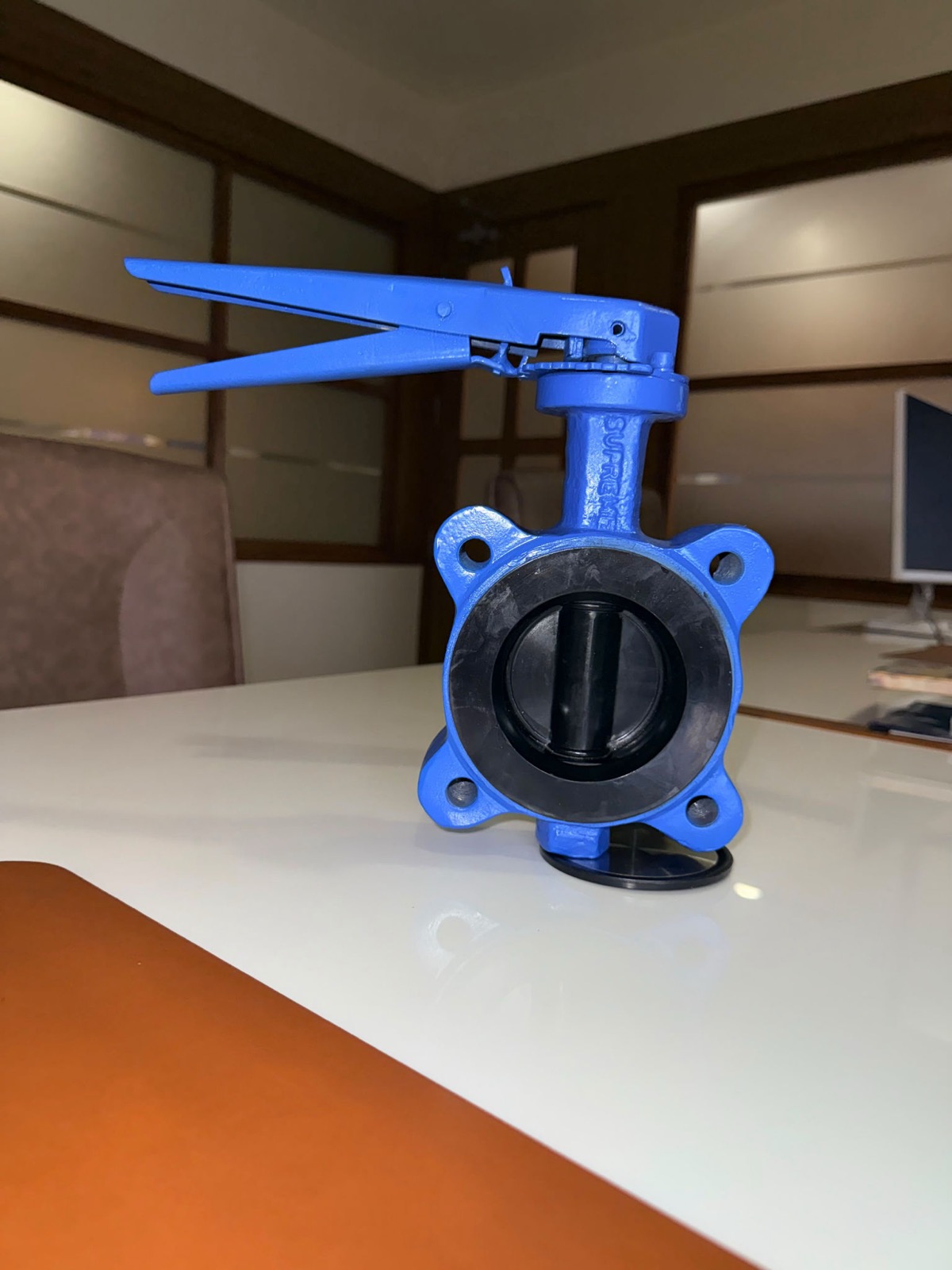

Ten rubber-lined lug butterfly valves were delivered to Al Jubail Industrial City for industrial supply. The valves shown above are from this shipment: blue epoxy-coated WCB lug body, cast SUPREME neck marking, rubber-lined body and disc, moulded seat, and hand-lever operator. The shipment confirms repeat capability for Class 150 lug BFVs from India into Jubail-area industrial plants — with full material traceability, MSS marking, GA drawings, and export HS classification 84818030.
Procure similar valves: Request quote · Quote builder · Rubber-lined lug BFV · Butterfly valves overview
Frequently asked questions
What rubber-lined lug butterfly valves did Supreme Valves export to Al Jubail, Saudi Arabia?
Supreme Valves manufactured and exported ten DN80 (3 inch) Class 150 concentric lug butterfly valves to Al Jubail Industrial City, Kingdom of Saudi Arabia. The package was CPE rubber lined (3 nos) and EPR rubber lined (7 nos), ASTM A216 WCB body and disc, both rubber lined with moulded elastomer seat, AISI 410 stem, and hand-lever operated.
Are body and disc both rubber lined on these Al Jubail lug butterfly valves?
Yes. On both CPE and EPR options the body and disc are rubber lined: a single-piece rubber-lined lug body with moulded seat and a centric disc lined to match the body lining (CPE or EPR).
What is the difference between the CPE and EPR lined valves in this shipment?
The mechanical envelope is the same (DN80 Class 150 lug, lever, WCB, AISI 410 stem, 57 mm face-to-face). CPE lining was supplied on 3 valves; EPR lining on 7 valves, so the plant could match elastomer to media while keeping the same Class 150 lug drilling.
What size, pressure rating, and operator were used on the Al Jubail lug BFVs?
Size DN80 (80 mm / 3 inch), rating Class 150 / PN10, lug ends for ASME B16.5 Class 150 flanges, face-to-face 57 mm (2-1/4 inch) per MSS-SP-67 / API 609 short pattern practice, hand-lever operated.
What materials and marking apply to these WCB lug butterfly valves?
Body and disc are ASTM A216 Grade WCB with CPE or EPR rubber lining; seat is moulded CPE or EPR; stem is AISI 410 stainless steel. Marking follows MSS-SP-25 with body die stamp for heat traceability. Manufacture and hydrostatic testing were completed at Supreme Valves' Ahmedabad works.
What HS code was used for exporting these butterfly valves from India to Al Jubail?
The export HS classification is 8481 80 30 (butterfly valves). The shipment was on an LUT export basis from India to Al Jubail Industrial City.
